Product Details:
Payment & Shipping Terms:
|
| Material: | SS304 | Inner Chamber Size: | 50*60*50mm |
|---|---|---|---|
| External Chamber Size: | 69*110*64cm(W*H*D) | Temperture Range: | RT+10℃～300℃ |
| Controller: | LED Controller | Power: | AC 220V 50HZ |
| Heating Method: | Hot-air Circulation System | Customized Size: | Acceptable |
| Cable Port: | External Power | Temp Control Fluctuation: | ± 1.5℃ |
| Accuracy: | ±0.5℃ | ||
| Highlight: | dryer oven machine,hot air circulation drying oven |
||

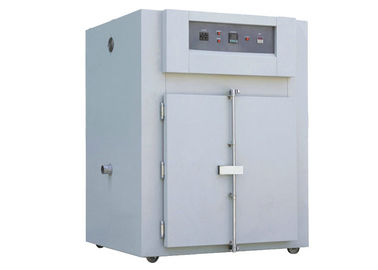

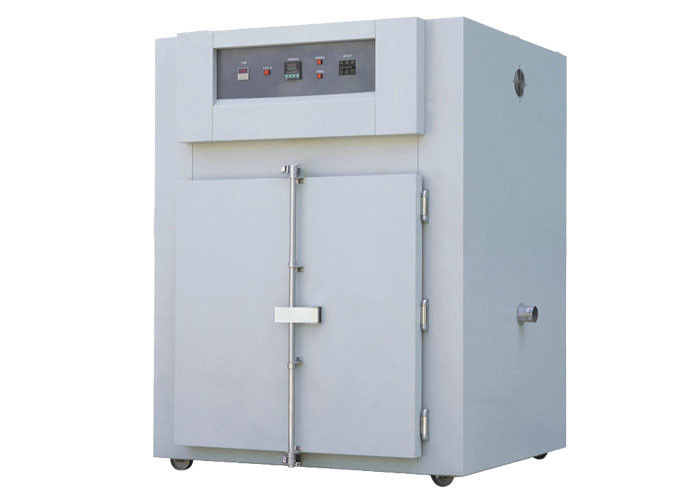

Quick Heating Industrial Drying Oven 50*60*50mm Inner Chamber Size CE Compliant
Specification:
| Product name | High Temperature oven | Model Number | XB-OTS-150L | ||
| Power | 1 phase 220V 50Hz | Cable Port | External Power | ||
| Interior size(W*H*L) | 50*60*50cm(W*H*D) |
Exterior size (W*H*L) |
69*110*64cm(W*H*D) | ||
| Customized size | Acceptable | Control method | PID ,PID automatically adjust the output | ||
|
Advantages:
|
1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted.
2.The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.
3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch.
4.Timing device for LED Digital constant timing, providing complete use Conditional design.
5.Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.
6.Machine continuous running time is above three month
7.Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down. |
||||
| Temp control fluctuation | ± 1.5℃ | Temperature range |
RT+10℃～300℃
|
||
| Accuracy | ±0.5℃ | Temperature resolution | 0.1 | ||
| Temperature uniformity | ±2℃ | Power |
4.8KW
|
||
|
Key set of data input |
Resolution 0.1 ℃ ntegration time(IT): 0～3600s Derivative time(DT): 0～900s Built-in timer function
|
Protection device |
Motor overload protection
|
||
|
Heating up time (NO-load) |
RT～160℃ about 28min
|
||||
| Temp controller | The microcomputer automatically calculus controller | ||||
| Chamber materials |
1．Inner chamber materials:SUS stainless steel plate 2．External chamber materials:Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating. 3．Insulation material: aluminum silicate glass wool 4．The clapboard Material: Stainless Steel 5．Stainless steel electric heater Material: fin heat pipe type 6．Time control: 0 ~ 999H/M/S adjustable. 7．The rmometry body: T thermocouple |
||||
| Air supply method |
Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not cause direct damage of high temperature ,when open the door.
|
||||
| Use of the environment |
Allowable temperature range of 0 ~ 35 ℃
|
||||
Features
* Mirror stainless steel inner chamber
* Test hole diameter 50mm on the left side
* Optional independent temperature protector.
* Optional RS485 interface for software connection.
OTS Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation;
2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service
