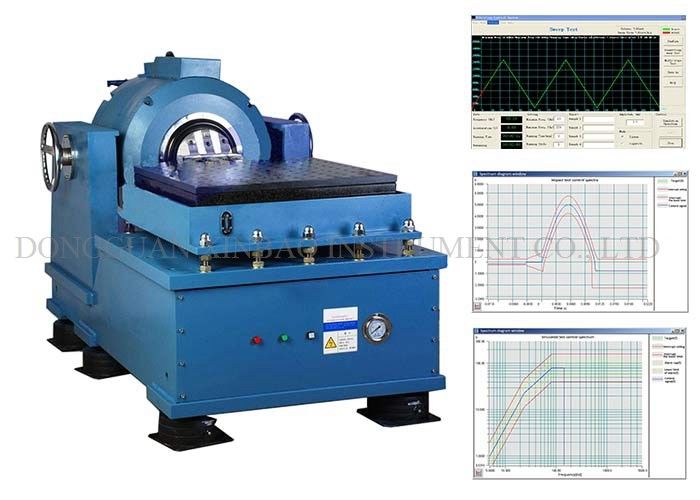

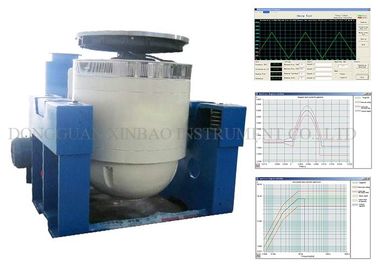

Reliable Environmental Chamber Temperature Humidity Vibration Integrated Test Machine
Application:
We are manufacturer of Electrodynamic High Frequency Vibration Tester, Electrodynamic Shaker series products, adopted the 'double-magnetic circuit structure',' self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance', 'trunnion isolation' advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
1,Name :Vibration test machine
2,Model:XB-OTS-DC600
System Performance parameters
| Vibration table | ||
| Sine thrust | 600kgf | |
| Random thrust | 600kgf | |
| Impact thrust | 1200kgf | |
| Frequency Range | 5～2000Hz | |
| Continued displacement | 51mm | |
| The impact of displacement | 51mm | |
| Maximum speed | 2m/s | |
| Maximum acceleration | 981m/s2 | |
| Moving coil diameter | Φ150mm | |
| Allow eccentric moment | ＞190N.m | |
| Load connection point | 6 piont | |
| Equivalent mass of moving parts | 6kg | |
| Countertops screw size (standard) | M8 | |
| Screw layout table (diameter, circumference) | 8 on Φ100mm,8 on Φ,200mm. | |
| Axial isolation frequency | ＜3Hz | |
| Maximum load | 120Kg (customer request 45Kg) | |
| Magnetic flux leakage | ＜1mT | |
| Dimensions (without packaging)(L×W×H) | 1600mm×985mm×850mm | |
| Vibration table Weight | 1850kg | |
| Amplifier output | 8kVA | |
| SNR | ＞65dB | |
| System Protection | The entire power amplifier has: Grid overvoltage, undervoltage power grid phase, logical failure, power module protection, power module temperature, output overcurrent, output overvoltage, power supply, displacement units, units body temperature, external linkage, etc. protection circuit, when any fault occurs, turn off the output, sound and light alarm. In addition to the above protection, it also has a protective function RMS values of tolerance protection, emergency stop devices, such as improving running. | |
| Rated output voltage | 120Vrms | |
| Amplifier efficiency | ＞95% | |
| Fan | ||
| Power | 0.75kW | |
| Airflow | 0.3m3/s | |
| Duct diameter | 120mm | |
| Pressure | 0.048kgf/cm2 | |
| Vertical extension table | ||
| Table size | 600mm×600mm | |
| Equivalent mass | 23kg | |
| Upper frequency | 2000Hz | |
| Countertop Materials | Aluminium | |
| Horizontal slide | ||
| Table size | 600mm×600mm | |
| Thickness | 30mm | |
| Countertops weight | 36kg | |
| Frequency | 2000Hz | |
| Bearing number | 1 | |
| Bearing weight | 0.58kg | |
| Connector Weight | 1.4kg | |
| Maximum Load | 300kg | |
| Countertop Materials | Aluminium | |
| Vibration controller | |
| Enter the number of channels | 2 voltage channels, 2 charge channels |
| Number of output channels | 1 Drive output, 1 COLA output |
| Resolution | 24-bit digital-to-analog converter (DAC / ADC) |
| Anti - aliasing filter | Analog anti-aliasing filter plus digital filter, stopband attenuation greater than 160dB / Oct |
| Coupling method | AC differential, AC single-ended, DC differential, DC single-ended, IEPE, TEDS (optional), charge |
| Enter the range | ± 10 VPEAK |
| controlling software | Sine control, random control, typical impact control, resonant search and presence |
