Servo Motor 24 Actuators Keyboard Key Life Testing Machine

Servo Motor 24 Actuators Keyboard Key Life Testing Machine
Servo Motor 24 Actuators Keyboard Key Life Testing Machine

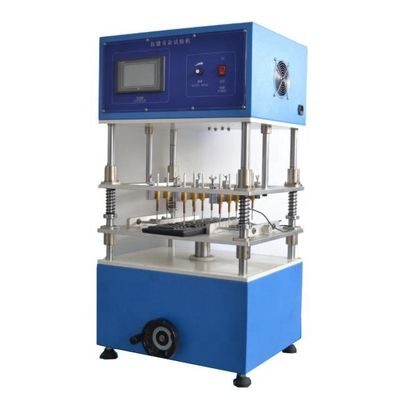

Large Image :  Servo Motor 24 Actuators Keyboard Key Life Testing Machine

Product Details:
Place of Origin: Dongguan China
Brand Name: OTS
Certification: CE
Model Number: Keyboard Key Life Testing Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for ISO 4918 Floor Caster Tester for PVC Flooring Testing
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Key Words: Keyboard Key Life Testing Machine Actuators Stroke: 10-360time /min
The Maximum Number Of Tests: 999999 Clamping Range Of Fixture: 450*500mm
Actuators Press Force Adjustable Range: 50~500g Weight: 130kg
Actuators Press Height Adjustable Range: 15mm Brand Name: OTS
High Light:

Keyboard Key Life Testing Machine

,

24 Actuators Life Testing Machine

,

panasonic servo motor life tester

Keyboard Key Life Testing Machine ( 24 Actuators ) / Working Platform Height Adjustable Range 0~260mm




Can test several products at the same time (each product can be multi-point test), and each button can set different pressure and different pressure.The machine adopts panasonic servo motor, mitsubishi PLC, Taiwan high clear touch screen, NHK high precision bearing, CNC processing parts of the whole machine transmission processing error is small, low noise, low failure rate, the use of touch screen setting, has the advantages of easy operation, easy to observe.
Use motor drive eccentric to move the link back and forth, so as to hit the key;Results the test times of counter were set up to determine the quality of silicone keys.




The Keyboard key life testing machine is suitable for use in various electronic products such as push button switches for endurance life testing. Keyboard key life tester/Computer key life tester is mainly used for keyboard and button products. In order to meet the various requirements of the test, the machine can perform continuous pressing endurance test on multiple buttons such as a computer keyboard.

The number of tests can be set, the test speed and the striking force can be adjusted, etc., and can be displayed by human-machine screen or PLC. Depending on the size of the test sample, the height of the work platform and the mounting position of the clamp can also be adjusted. The product features a complete function, the use of adjustment is more convenient, close to the analog finger operation of the human
finger, in order to achieve more reliable and strict high quality requirements





Specification



Name Detail Name Detail
Actuators stroke 24mm( Fixed) /24 actuators
Test speed range 10-360time /min
The maximum number of tests 999999
Working platform height adjustable range 0~260mm
Clamping range of fixture 450*500mm
Actuators installing range 450*350mm
Actuators press force adjustable range 50~500g
Actuators press height adjustable range 15mm
Min distance bewteen actuators X axis( 10mm)
Y axis( 12mm)
Machine size(W*H*D) 600*1200*550mm
Weight 130kg
