Key Words: | Luggage Pull Rod Smoothness Test Machine | Sample Holder: | Bag Holder |
---|---|---|---|
Test Power: | Servo Motor | Test Times: | 1 ~ 99999. Automatic Shutdown |
Tretching Speed: | 0 ~ 30cm / Sec, Adjustable | Brand: | OTS |
High Light: | Luggage Pull Rod Smoothness Test Machine,Servo Motor Smoothness Test Machine,Servo Motor Fatigue Testing Machine |

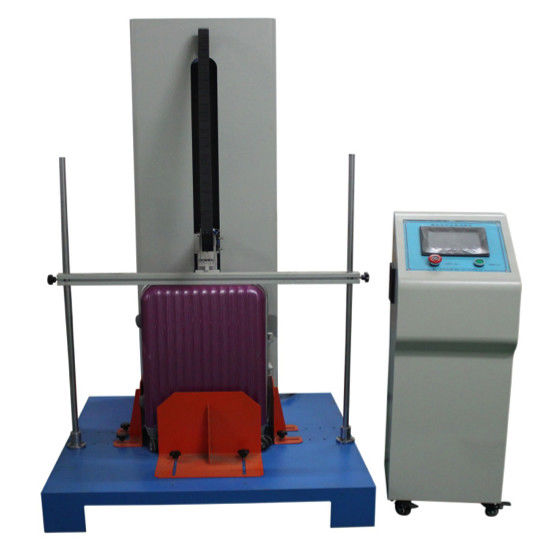

Luggage Pull Rod Smoothness Test Machine / The Pull Rod And Pull Rod Lock Can Be Tested At The Same Time
Product Introduction
This machine does reciprocating fatigue test for the pull rod of luggage. In the test, the specimen will be stretched to show the pull-out and pressing force value of the pull rod, so as to test the gap, looseness, connecting rod failure, deformation, etc. According to the actual requirements of customers to achieve sectional test and pole less rod test
Product specification:
1. Control mode: PLC control, man-machine interface operation mode.
2. Sample holder. Bag holder
3. Pull rod holder with pull rod lock automatic opening and closing device
4. Pull rod movement device, the test power is servo motor synchronous belt drive. Able to move back and forth with a speed of 0-30 times / min
5. Test stroke: 20 ~ 100cm, adjustable
6. The height of the support frame shall not be less than 1500mm, and the pulling and pressing travel guide rail shall be installed
7. The pull rod lock switch device can be installed according to the different forms of pull rod lock
8. It can be tested in sections
9. It has the function of automatically recording the times of pulling and closing
10. The pull rod and pull rod lock can be tested at the same time
11. Stretching speed: 0 ~ 30cm / sec, adjustable
12. Compression speed: 0 ~ 30cm / sec, adjustable
13. Test times: 1 ~ 99999. Automatic shutdown
14. Test power: servo motor
16. Machine size: 120 * 120 * 210cm
17. Machine weight: 180kg
18. Power supply: AC220 V, 50 Hz
Technical Support:
1. SUS Stainless plate is cut by advanced leaser machine which can ensure accuracy; All machine appearance is anti-rust electrostatic painting;
2. Imported electronic components: ABB/Siemens/Panasonic/Saginomiya/Danfoss/
Emkarate/Omron/Philips and imported compressor:BOEK/TECUMSEH, which can keep the machine’s service life over 10 years.
After-sale Service:
1. We promise 14 month’s warranty and lifetime maintenance.
2. During the warranty time, any components broken is FREE to change, and we offer FREE picture, video instruction after your purchasing of our machine.
3. All machine is sent with a packing list, operation instruction(paper file), warranty certificate(with valid date) and other accessories.
Package:
We pack machine with plastic wrap (water proof), then pack with poly wood board,
cystosepiment inside the board and machine for fixture.
