Product Details:
Payment & Shipping Terms:
|
| Working Environment:: | -10℃~100℃,10~90%R.H. | Electrical Life: | Resistive Load 50000 Times |
|---|---|---|---|
| Mechanical Life: | 300000 Times | Internal Resistance: | ≤5mΩ |
| Response Time: | ≤5μs | Short Circuit Range: | 0-1000A(adjustable) |
| Impulse Voltage: | AC 1kv/1.2-50μs,1min | Working Voltage: | 220VAC 50Hz-60Hz |
| High Light: | battery and cell test equipment,impact test apparatus |
||

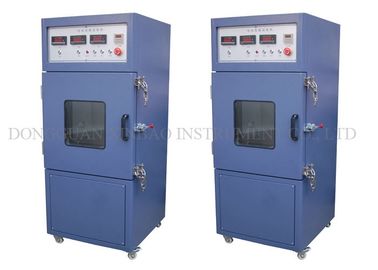

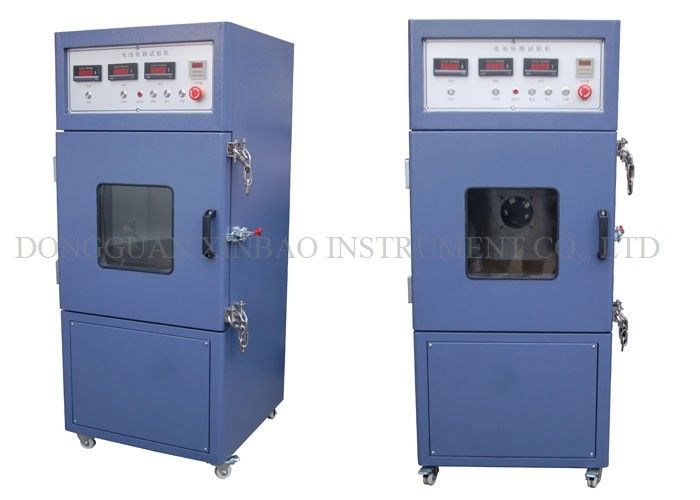

Simulate Battery Internal Short Circuit Test Machine
Specification
| Model | XB-7078 |
| Working voltage | 220VAC 50Hz-60Hz |
| Impulse voltage | AC 1kv/1.2-50μs,1min |
| Short circuit range | 0-1000A(adjustable) |
| Response time | ≤5μs |
| Maximum voltage of measurable battery | 100V |
| Internal resistance | ≤5mΩ |
| Cold state voltage sucks | ≯66％Us |
| Cold state voltage releasing | ≯30％Us,≮5％Us |
| Mechanical life | 300000 times |
| Electrical Life | Resistive load 50000 times |
| Working Environment | -10℃~100℃,10~90%R.H. |
Feacture
1. Layout structure, electromagnetic system and main contact arc extinguishing system are respectively fixed on the mounting frame, the angular rotation of the clapper type electromagnetic system and double winding attraction coil, arris pressing device is added in the rotation angle
2. The rated working current 1000A DC, a series of magnetic blow longitudinal clapboard clay arc shield arc extinguishing system
3. Contactor reliability, safety, long service life, convenient repair and maintenance
4. Measurement of voltage: 0-100V, ensure the accuracy of test;
5. Reliable, stable, has the self-locking and interlocking functions, strong anti-interference ability, long service life
Introduction
Testing Machine,Laboratory Equipment,Experiment Equipment, Short Circuit Test Machine is designed by combining various battery short circuit test standard requirements. According to the standard requirements, the short circuit device must conforms to the internal resistance range far less than 100mΩ so as to achieve the maximum short circuit current required by the test.
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Our Company
OTS Instrument Co., Ltd.
was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing
requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing
process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI,
AATCC, IEC, VDE...
