Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-UVB | Product Name: | Solar Simulator Climatic Testing UV Aging Weather Resistant Test Chamber |
|---|---|---|---|
| UV Wavelength: | 320-400um(UV-a), 280-320um(UV-B) | Lamp Power: | 40W/Unit, 8PCS For Unit Chamber |
| Temp Range: | Rt+10°c ~70°c | Warranty Period: | 14 Months |
| Humidity Range: | 10%~95%R.H | Size Of Standard Specimen: | 75×150mm （customized Available) |
| Standards: | ASTM D4329、D499、D4587、D5208、G154、G53; ISO 4892-3、ISO 11507; EN534；EN 1062-4、BS 2782; JIS D0205; SAE J2020,GB/T14522-93 | ||
| High Light: | thermal test chamber,temp humidity chamber |
||

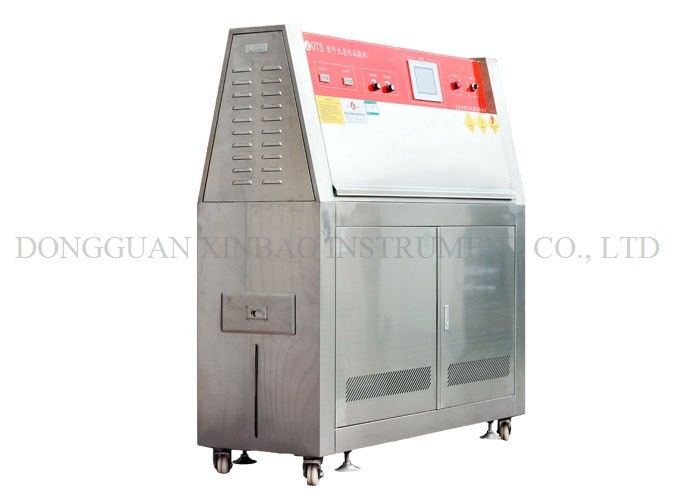

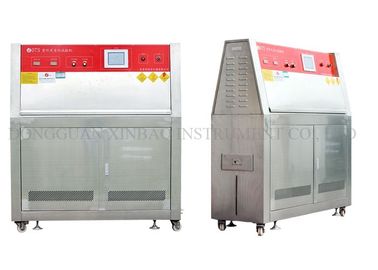

Solar Simulator Climatic Testing UV Aging Weather Resistant Test Chamber
Introduction
Solar Simulator Climatic Testing UV Aging Weather Resistant Test Chamber is designed for evaluating the resistant performance of non-metallic materials, organic materials (plastics, paints, coatings, rubbers, etc.) under the specified conditions such as sunlight, temperature, and other climatic conditions. It creates a man-made testing environment imitating the natural light source such as sunlight and other damages in the nature, such as rain and dew damage, to impose on the materials and to assess the degree of color changing and fading under the accelerated environment conditions. The chamber fully complies with the requirements of Standard GB/T16585-1996, GB14522-93, GB/T16422.3-97, ASTMG53 and etc., provides the best UV sunlight simulation and is easy to use and operate.
Technical Parameters :
| Model | XB-OTS-UVA/B |
| Machine size | 500×1300×1460(D×W×H)mm |
| Tamp range | RT+10℃~+70℃ |
| Temp fluctuation | ±1℃ |
| Temp uniformity | ±3℃ |
| Humidity range | ≥95% R·H |
| Distance between lamps | 70mm |
| Distance between samples and lamps | 50±2 mm |
| Light source | UVA-340 8 pcs / UVB-313 8pcs |
| Wavelength of UV light range | 320-400um(UV-a), 280-320um(UV-B) |
| Size of standard specimen | 75×150mm (customized available) |
| Net Weight | 150KG |
Feature :
* Our UV aging test chamber series includes 4 different types of UV aging test boxes, QUV/se, QUV/basci, QUV/spray and QUV/cw. It can meet the testing standards of coatings, ink, adhesives, plastic products and other industries.
Standard
1. ISO 48-3-2006, Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps;
2. ASTM D4329-2005, Standard Practice for Fluorescent UV Exposure of Plastics;
3. ASTM D4587-2005, Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings;
4. ASTM D5208-2001, Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics, etc.
