| Temperture Range: | RT +10 ℃ ~ 70 ℃ | Standard Specimens: | 75*150mm |
|---|---|---|---|
| Sample Quantity: | 48 Piece | Inner Chamber Size: | 1165*450*500mm |
| Wavelength: | 315-400nm | Power: | AC 220V 50HZ |
| Lamp Quantity: | 8 Piece | Lamp Lifetime: | 1800-2200 Hours |
| Lamp Brand: | Q Lab From USA | Control System: | LCD Touch Screen |
| High Light: | uv accelerated weathering tester,uv testing equipment |
||

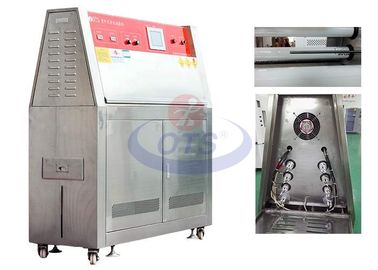

Programmable UV light accelerated aging environment test chamber
Application :
Weather accelerated uv aging test chamber is designed and manufactured for simulate heat and ultraviolet radiation of the sun, rain and dew, to inspect and predict the aging resistance of the product according to the testing result, and is helpful to optimize the products .the testing type damage include: bleaching, discoloration, gloss loss, powder, crack, turbidity, bubble-based, strength decline and oxidation.
It's widely used in the industry, such as coating, printing ink, paint, resin, plastics, print, packing, motor van, cosmetic, metal, electron, galvanization, medical, and so on.
Material and structure:
1, unit material: 304 stainless steel inside and outside
2, the sample rack: aluminum frame frame as the board
3, the control device: color touch screen programmer or RKC intelligent controller
4, irradiation lamp: UVA-340 8 each side of a total of 4 sides
5, can be two-way connection (RS232 communication interface)
6, power leakage circuit breaker control circuit overload short-circuit alarm, over-temperature alarm, water protection
Technical Parameters:
| Model | XB-OTS-UVA |
| Machine size | 500×1300×1460(D×W×H)mm |
| Tamp range | RT+10℃~+70℃ |
| Temp fluctuation | ±1℃ |
| Temp uniformity | ±3℃ |
| Humidity range | ≥95% R·H |
| Distance between lamps | 70mm |
| Distance between samples and lamps | 50±2 mm |
| Light source | UVA-340 8 pcs |
| Wavelength of UV light range | 315～400nm |
| Size of standard specimen | 75×150mm (customized available) |
| Net Weight | 150KG |
Equipment Conditions Of Use
1, ambient temperature: 5 ℃ ~ +32 ℃;
2, humidity: ≤ 85%;
3, Power requirements: AC220 (± 10%) V/50HZ One phase
4, pre-installed capacity: 5KW
More Reliable
Global safety design, use our chambers safely and with peace of mind for many years to come.We deliver chambers that conform to international safety standards.
Our chambers conform to ISO risk assessment as well as global safety design electrical safety standards such as CE marking and EMC directive.
UV weathering machine main components
| Name | Spec | Original |
| Outside chamber | SUS304 1.0mm | Japan |
| Inner chamber | SUS304 1.0mm | Japan |
| Door | SUS304 1.0mm | Japan |
| Controller | Color touch screen TEMI E-350 | South korea |
| Heating pipe | Stainless steel finned heating pipe | Taiwan |
| AC contactor | CJX2-12 | DELIXI |
| Intermediate relay | MY2NJ | Japan |
| Solid State Relays | SSR | Taiwan |
