| Usage: | Strength Testing Machine | Test Stroke: | 100mm |
|---|---|---|---|
| Test Speed: | 0~200mm/min | Capacity (optional): | 500gf, 2kgf, 5kgf |
| Load Accuracy: | ±0.5% | Min. Angle Display: | 0.001mm |
| Speed Accuracy: | ±0.5% | Unit (switchable): | Kgf, N, Lb, Gf |
| Min. Load Display: | 0.01gf | ||
| High Light: | impact test equipment,test equipment for cell phones |
||

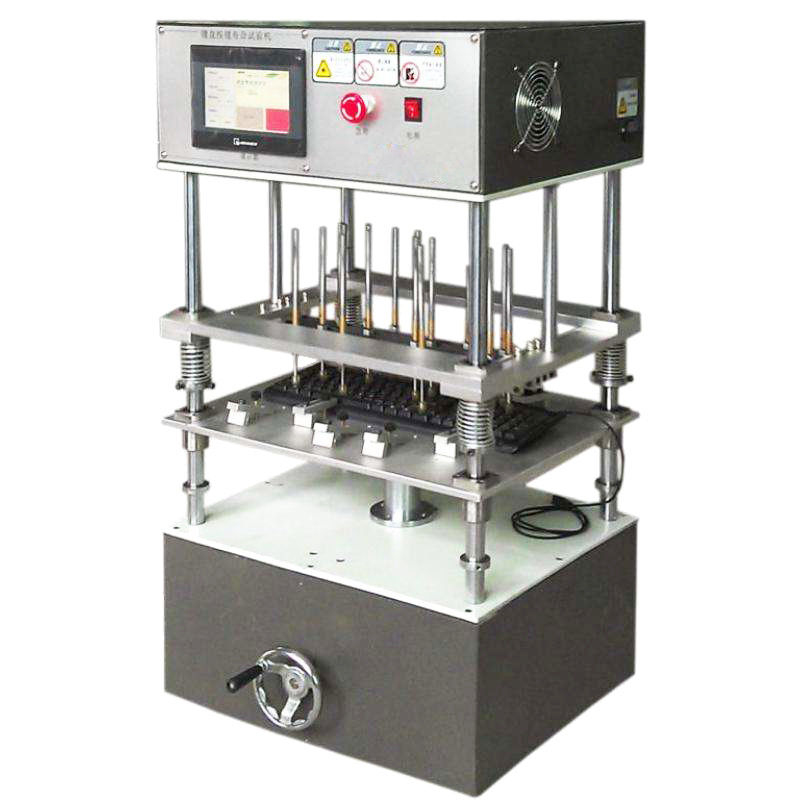

Station Key And Button Life Testing Machine
Introduction:
This tester is used for pressing force test and rebounding force test of keyboard buttons, and the keystokes, buttons of all kinds of electronic products.
Adopt high precision load cell and drive by servo motor, can get accurate force testing data.
Specification:
| Model | XB-OTS-205S |
|---|---|
| Capacity (optional) | 500gf, 2kgf, 5kgf |
| Unit (switchable) | Kgf, N, Lb, gf |
| Load accuracy | ±0.5% |
| Min. load display | 0.01gf |
| Test stroke | 100mm |
| Min. angle display | 0.001mm |
| Test speed | 0~200mm/min |
| Speed accuracy | ±0.5% |
| motor | AC servo motor |
| Main unit dimension (WxDxH) | 300x270x500mm |
| Main unit weight | 25kg |
| Power supply | AC220V 5A or specified by user |
Applications:
Rubber key force test
Spring & key force test
Keyboard & mobile keystoke force test
Switch force test
Features:
1.The software can create the force value testing report and the testing curves.
2.The values of peak force, return force, distance, TT, Click rate and dynamic Impedance data
can directly display on the testing window.
3.FC, FC_D, FP,. FP_D, FM, FM_D, FR, FR_D, CC, CC_D, CR, TT, FM, FO, FO_D can be indicated after testing and past or failure can be judged by software according r setting the judging conditions.
4.Chinese / English display interface can be shifted by user; N, lb, gf, kg units can be shifted freely.
5.Testing methods can be set and reserved by user, and can create the life-time damping curve and the testing report which can be converted to be Excel and PDF file, or can be printed out directly from the original file.

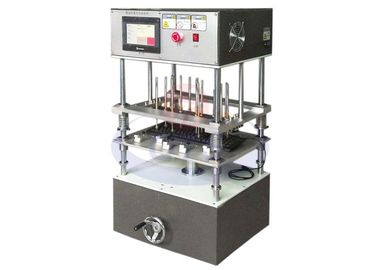

Product View:
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
