| Name: | Mask Flame Retardant Performance Tester | Linear Motion Speed: | (60±5) Mm/s |
|---|---|---|---|
| Flame Height: | 40±4mm | Flame Temperature Measuring Probe: | 1.5mm |
| Temperature Burner: | (800±50)℃ | Distance Between The Burner And The Lowest Point Of The Mask: | (20±2) Mm |
| Working Power: | AC220V, 50Hz, 50W | Weight: | About 30kg |
| High Light: | Mask Flame Retardant Performance Tester,60mm/S Flame Retardant Performance Tester,Mask Flame Retardant Test Equipment |
||
Surgical Face Mask 60mm/S Flame Retardant Performance Tester
Overview:
It is mainly used to test the burning performance of medical masks after contacting flame at a certain linear speed.
Instrument features:
1. The mask fixture is a human head model, which can fully simulate the actual use state of the mask.
2. The burner is equipped with propane (liquefied gas) and other combustible gas interfaces.
3. The height of the burner is adjustable.
4. The burner is automatically positioned regularly.
5. The burning time and flame retardant time are automatically recorded and displayed digitally.
6. Equipped with flame temperature measuring probe and flame temperature display.
Technical parameters:
| Name: | Mask Flame Retardant Performance Tester | Linear Motion Speed: | (60±5) Mm/s |
|---|---|---|---|
| Flame Height: | 40±4mm | Flame Temperature Measuring Probe: | 1.5mm |
| Temperature Burner: | (800±50)℃ | Distance Between The Burner And The Lowest Point Of The Mask: | (20±2) Mm |
| Working Power: | AC220V, 50Hz, 50W | Weight: | About 30kg |
1. The linear motion speed of the tip of the nose of the head mold is (60±5) mm/s
2. The flame height can be adjusted (adjusted at the factory at 40±4mm)
3. The diameter of the flame temperature measuring probe is 1.5mm
4. The temperature of the flame at the height of (20±2) mm from the burner is (800±50)℃
5. The distance between the burner and the lowest point of the mask is (20±2) mm
6. The burner height adjustment range is 30mm
7. The wall thickness of the metal head mold is 2~3mm, which is flame-resistant and flame-resistant
8. Timer for continued burning time and smoldering time: 0-99.99 seconds, accuracy: ±0.01 seconds
9. Working power: AC220V, 50Hz, 50W
10. Weight: about 30kg
Main configuration:
1: One combustion engine
2: A set of mask burning fixture
3: A set of combustion pipeline and nozzle
4: A set of flame electronically controlled mobile system
5: A set of control box of electric control system
6: A set of timing control system

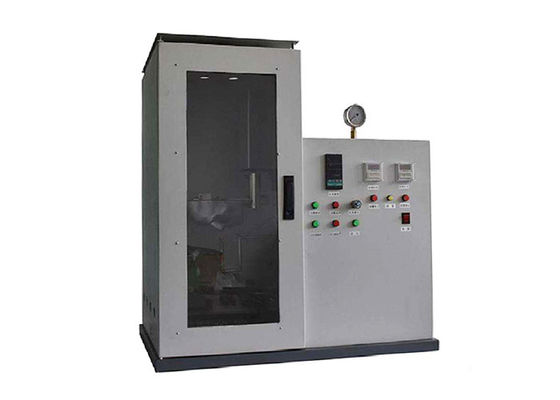

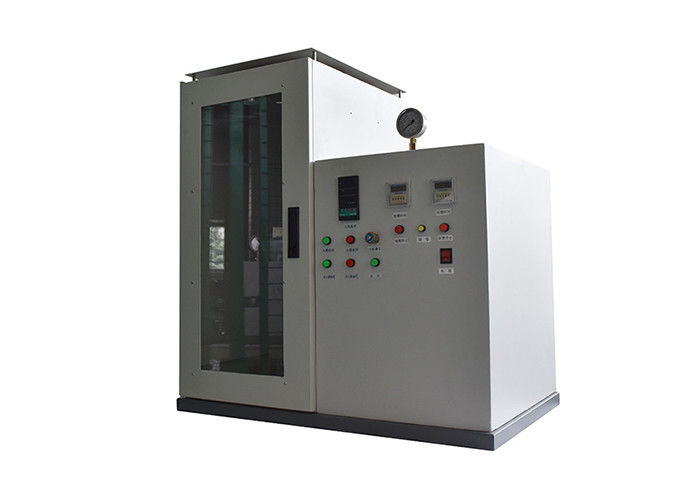

Pictures
