Thermal Shock Lab Test Chamber 200 Degree Temperature Recover Time ≤5min

200 degree Environmental Thermal Shock Test Chamber IN Metal / Plastic / Rubber

Applicable Industries

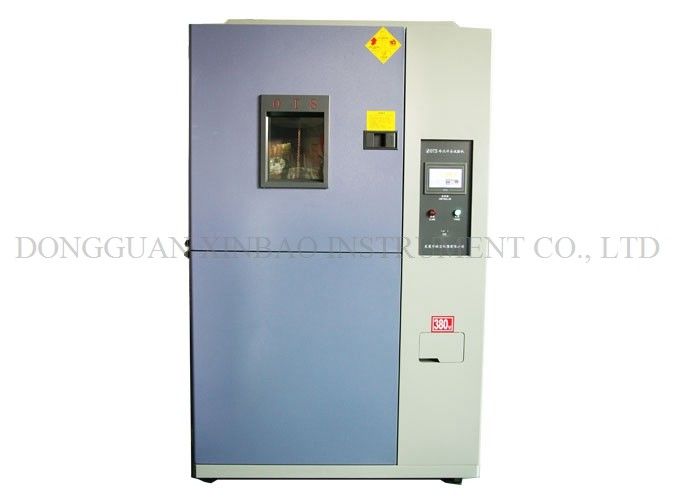

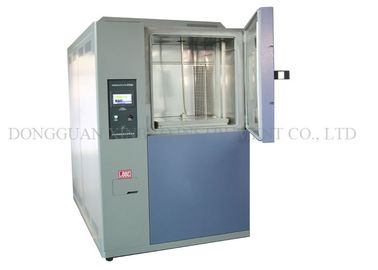

200 degree Environmental Thermal Shock Test Chamber IN Metal / Plastic / Rubber that subjects a product to alternating extremes of high and low temperatures in order to observe changes in product characteristics and failure occurrence caused by different materials and their thermal expansion coefficients. Thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures. The product is moved from ambient to hot or ambient to cold zones. The chamber can be programmed to include a dwell period in the ambient zone if desired.It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be Used as a reference or basis for product improvement.

Specification

Features

1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.

Corresponding Standard

GB11158 GB10589-89 GB10592-89

GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001

GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93

ASTM D1735 EIA - 364-59 IEC60068-2-1.1990

IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C

Safety Devices of Three-Zone High and Low Temperature Shock Simulate Chamber:

1. Hot chamber overheat protection switch
2. Cold chamber overheat protection switch
3. Air circulator overload alarm
4. Refrigerator high/low pressure protector
5. Compressor temperature switch
6. Air pressure switch
7. Fuse
8. Water suspension relay ( water-cooled specification only)
9. Compressor circuit breaker
10. Heater circuit breaker
11. Test area overheat/overcool protector
12. Air purge valve

Refrigeration operation principle

The level of the refrigeration cycle are used against the card if the cycle, which consists of two isothermal and two adiabatic processes, whose process is as follows: a refrigerant through the compressor adiabatic compression to a higher pressure, the power consumption of the exhaust gas temperature followed by the condenser refrigerant isothermal heat exchange medium in and around the heat to medium four weeks. After the refrigerant flows through the shutoff valve adiabatic expansion work, when the refrigerant temperature decreases. This loop again and again to achieve the purpose of cooling.

Air conditioning system
1) the air control: forced ventilation circulation, balance thermostat method (BTC). This method not only refers to the case of the cooling system for continuous operation, the control system according to the temperature set point of the heater to control the output of the results by automatically calculating PID output, and ultimately achieve a dynamic equilibrium.
2)air circulating means: built between the air circulation fan duct and the long axis of stainless steel, the use of energy efficient refrigerators and regulation system, by effective and efficient heat exchange ventilator, to achieve the purpose of the temperature change. By adjustable air outlet adjusting bolt, thereby significantly improving the chamber temperature uniformity;
3) the air cooling method: multi-stage diaphragm air heat exchanger.
4) air heating: Watkins quality nickel chrome electric heater.
