Sine Thrust: | 600kgf | Random Thrust: | 600kgf |
---|---|---|---|
Impact Thrust: | 1200kgf | Frequency Range: | 5~2000Hz |
Continued Displacement: | 51mm | Maximum Speed: | 2m/s |
Maximum Acceleration: | 981m/s2 | Moving Coil Diameter: | Φ150mm |
Maximum Load: | 120Kg (customer Request 45Kg) | ||
Highlight: | vibration testing equipment,vibration lab equipment |

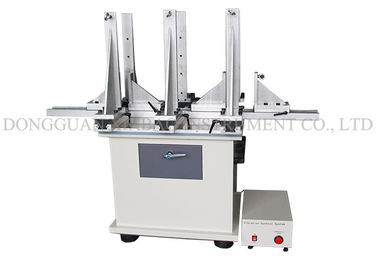

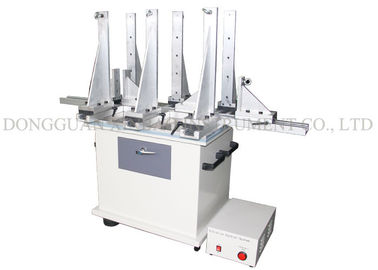

Three Axis Vibration Testing Machine Magnetic Flux Leakage <1mT Large Carrying Capacity
Three Axis High Frequency Vibration Endurance Test Machine for Lab simulates a series of controlled vibration(ocean
wave, wind blow, earthquake, rain...), produced by natural or human made. Testing products withstands
transportation and vibration environment in lifelong period, consequently control product quality and design best products. It is widely applied to national defense, aviation, aerospace, communications, electronics, automotive, home appliance, etc.
Test Products
Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.
System Performance parameters
Vibration table | ||
Sine thrust | 600kgf | |
Random thrust | 600kgf | |
Impact thrust | 1200kgf | |
Frequency Range | 5~2000Hz | |
Continued displacement | 51mm | |
The impact of displacement | 51mm | |
Maximum speed | 2m/s | |
Maximum acceleration | 981m/s2 | |
Moving coil diameter | Φ150mm | |
Allow eccentric moment | >190N.m | |
Load connection point | 6 piont | |
Equivalent mass of moving parts | 6kg | |
Countertops screw size (standard) | M8 | |
Screw layout table (diameter, circumference) | 8 on Φ100mm,8 on Φ,200mm. | |
Axial isolation frequency | <3Hz | |
Maximum load | 120Kg (customer request 45Kg) | |
Magnetic flux leakage | <1mT | |
Dimensions (without packaging)(L×W×H) | 1600mm×985mm×850mm | |
Vibration table Weight | 1850kg | |
Amplifier output | 8kVA | |
SNR | >65dB | |
System Protection | The entire power amplifier has: Grid overvoltage, undervoltage power grid phase, logical failure, power module protection, power module temperature, output overcurrent, output overvoltage, power supply, displacement units, units body temperature, external linkage, etc. protection circuit, when any fault occurs, turn off the output, sound and light alarm. In addition to the above protection, it also has a protective function RMS values of tolerance protection, emergency stop devices, such as improving running. | |
Rated output voltage | 120Vrms | |
Amplifier efficiency | >95% | |
Fan | ||
Power | 0.75kW | |
Airflow | 0.3m3/s | |
Duct diameter | 120mm | |
Pressure | 0.048kgf/cm2 | |
Vertical extension table | ||
Table size | 600mm×600mm | |
Equivalent mass | 23kg | |
Upper frequency | 2000Hz | |
Countertop Materials | Aluminium | |
Horizontal slide | ||
Table size | 600mm×600mm | |
Thickness | 30mm | |
Countertops weight | 36kg | |
Frequency | 2000Hz | |
Bearing number | 1 | |
Bearing weight | 0.58kg | |
Connector Weight | 1.4kg | |
Maximum Load | 300kg | |
Countertop Materials | Aluminium |
Equipment breakdown Introduction
1.Vibration table
* Dual magnetic structure of the high magnetic field strength, magnetic flux leakage; special degaussing structure can drop 1mT the following table magnetic flux leakage.
*Adopt dynamic optimization of dynamic skeleton in reducing moving parts while improving the quality of the first-order resonance frequency, broadening the electrodynamic vibration limit the operating frequency.
*Built-supporting air spring-loaded, large capacity, good low-frequency characteristics
*Multi-layer rubber isolation trunnion vertical orientation; when a large load of work, platform smooth movement; vertical vibration-free with special foundations.
*System with platform body overheating, overload, over-current, over-voltage, over displacement protection. Grid overvoltage, undervoltage, lack of equal protection. Driving power protection, current limiting protection, soft start settings, temperature protection, excitation open, short circuit protection, fault protection and other protection modules.
*And digital vibration control device support can be achieved sine, random, classical shock, shock response spectrum, various environmental adaptability sinusoidal vibration test random + random + random vibration.
*System requirements for low voltage fluctuations (≤ ± 10%).
*Low resistance grounding system requirements (≤ 4Ω).
*High system reliability, especially suitable for long-running work environment.
Features:
*The introduction of foreign technology, key components and materials imported (air springs, epoxy resin, stainless steel, rubber shock absorber, etc.);
*Built-supporting air spring-loaded, large carrying capacity;
*Multi-layer rubber isolation trunnion vertical orientation;
*Using finite element analysis made no skeleton dynamic, more efficient while increasing the resonance frequency of the moving coil moving parts to reduce the quality
1 It has light armature and high stiffiness.The axial resonance frequency of armature is over 4000HZ.
2 It utilize the computer on line control and input data for immediate storage facilitate the control effectiveness and the control curve display.
3 The various parameters such as vibration frequency,displacement,velocity and acceleration can be monitored during the operation.
4 The design of low resistance and high performance is zble to enhance the efficiency and to lower the cost of testing.
5 The stray magnetic field of the vibration generator is little.This stray magnetic field doesn't disturb the test samples which are sensitive to magnetic field.
OTS Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation;
2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service
