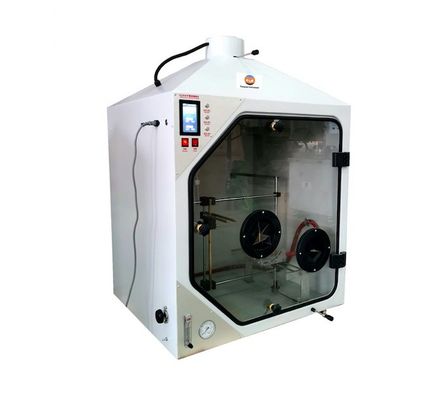

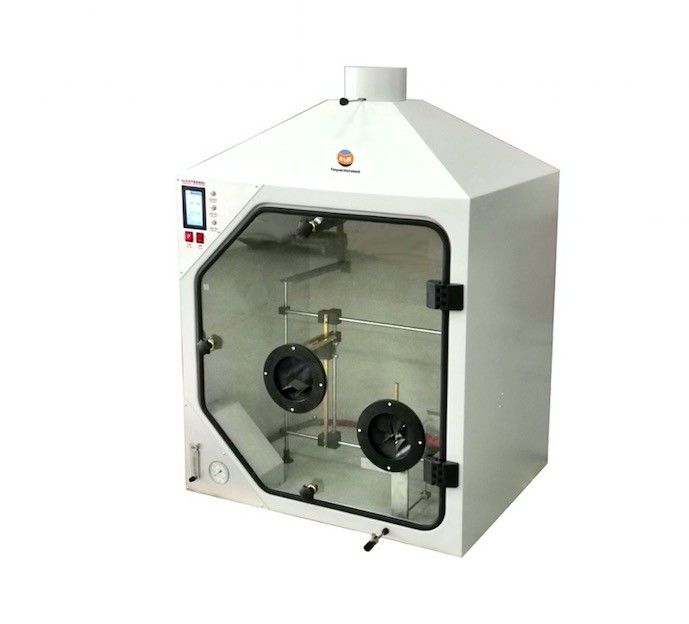

UL94 Horizontal Vertical Flammability Test Chamber

UL94 Horizontal Vertical Flammability Test Chamber
UL94 Horizontal Vertical Flammability Test Chamber UL94 Horizontal Vertical Flammability Test Chamber

Large Image :  UL94 Horizontal Vertical Flammability Test Chamber

Product Details:
Place of Origin: Dongguan China
Brand Name: OTS
Certification: CE
Model Number: UL94 Horizontal And Vertical Flammability Tester
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for ISO 4918 Floor Caster Tester for PVC Flooring Testing
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Key Words: Horizontal And Vertical Flammability Tester Working Mode: Continuous Operation
Burner Titled Angle: 0°、20°、45° Timing Device: 9999*0.1s
Gas Flow: 105±10ml/min Flow Accuracy: 1%
Power Supply: 220V 50Hz Power: Electronic
High Light:

IP20 Horizontal Vertical Flammability Test Chamber


UL94 Flammability Test Chamber


220V 50Hz Flammability Testing Equipment

Horizontal Vertical Flammability Tester Horizontal Vertical Flammability Tester UL94​


Horizontal-vertical flame chamber tester is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. It screening procedure for comparing the relative burning behavior specimens made from plastic and other non-metallic materials, exposed to a flame ignition source of 50W or 500W nominal power. These test methods determine the linear burning rate and the after flame/afterglow times, as well as the damaged length of specimens. They are applicable to solid and cellular materials that have an apparent density of not less than 250kg/m3, determined in accordance with ISO 845. Then do not apply to materials that shrink away from the applied flame without ignition; ISO 9773 should be used for thin flexible materials. And the combustion test device of plastic materials represented by UL-94. It can perform each test of V-0,V-1,V-2,HB,5V,5VA,5VB



Standards: UL 94 Test for Flammability of Plastic Materials for Parts in Devices and

Appliances : IEC60950:1999, GBT2408,ISO1210,1992,GB/T 5169, GB/T 4706

Accessories:  Micro gas tanks, Micro gas cylinders 2pcs, lighting device, air extractor

Gas flow control valve, Gas pressure gauge, Gas pressure regulator, Gas flow meter, Gas u-shaped , pressure gauge and specimen clamp,, power line 1pcs


Main specification:


Power/Grade 50W(V0,V1) 500W(5VA,5VB)
Standards UL94,IEC60695-11-4/10 UL94,IEC60695-11-3/20
timing device 9999*0.1s 9999*0.1s
Burner titled angle 0°,20°,45° 0°,20°,45°
Flame height 20±1mm 40±2mm
Torch standard UL94,IEC60695-11-4/10 UL94,IEC60695-11-3/20
gas flow 105±10ml/min 965±30ml/min
Water column height 10mm 10mm
Flow accuracy 1% 1%
Gas category Methane or gas Methane or gas
Chamber volume It is more than 0.75 cubic meters, the inner wall is black, and the brightness is less than 20lx



Main Functions


1. Alignment mode: motor driven up and down alignment spline

2. It is also equipped with lighting device, gas extraction device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flowmeter, gas U-type pressure gauge and sample fixture

3. Working power supply: single phase AC220 V / 50 Hz

4. Protection function: combustible gas concentration detection alarm: when the concentration of combustible gas in the combustion chamber exceeds the standard, the machine will automatically cut off the gas supply and give an alarm prompt, and start the exhaust system to start ventilation until the air quality in the combustion chamber returns to normal

5. Control mode: panel key control.

6. Insulation class: F

7. Protection grade: IP20 (suitable for indoor use)

8. Fan noise: 45 dB

9. Exhaust emission mode: side air inlet and top outlet air

10. Working mode: continuous operation

11. External dimension host: width 1200 * depth 700 * height 1300mm

12. Applicable ambient temperature - 10 ℃ - + 50 ℃

13. Load type universal casters are used for moving, 2 in front and 2 in front

14. Applicable relative humidity ≤ 95%

15. Altitude ≤ 2500 m
