Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-30A | Product Name: | Easy Installation Walk In Test Chamber With Temperature Humidity Control |
|---|---|---|---|
| Temperature Control: | -65°C ~ +80 °C | Humidity Control: | 20%~98% RH |
| Compressor: | Original France Tecumseh | Temperature Accuracy: | 0.5°C |
| Heating Cooling Rate: | 5°C/min 1.2°C/min | Usage: | Universal Testing Machine,environmental Test Chambers |
| Power: | Electronic | ||
| High Light: | temperature controlled chamber,benchtop environmental chamber |
||

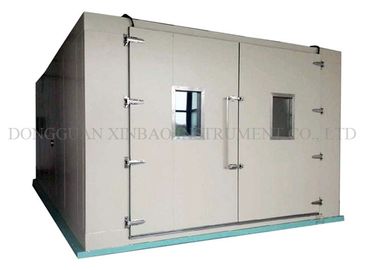

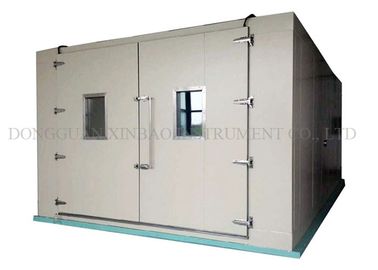

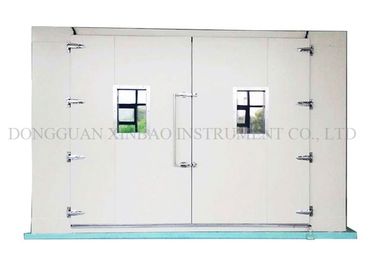

Easy Installation Walk In Test Chamber With Temperature Humidity control
Applicable Industries:
OTS Walk-In Chamber serves as a test site for large components, assemblies, and finished products in electrical and electronics, aerospace, batteries and automobiles, etcOTS manufactures both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
OTS-Series walk-in temperature and climate test chambers are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.
Control System
(1) P.I.D microcomputer automatic calculate temperature controller, PV/SV display at
the same time, set by press key. (Korea TEMI touch screen controller optional);
(2) 380V Solid state relay temperature output;
(3) Current Controller : SSR no contact relay
Specification
Overseas Installation and Debugging Available Environmental Walk-in Test Chambers
Model
| Model | XB-OTS-K-A |
| Volume | 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements |
| Temperature range | -65 °C ~+80 °C |
| Humidity range | 20%~95%R.H. |
| Accuracy/uniformity | ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H. |
| Accuracy/volatility | ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. |
| Cooling time | 5.0 °C /minute |
| Inside material | SUS#304 Stainless Steel |
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
| Cooling system | Water-cooled / two-stage compressor |
| Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
| Accessories | recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball |
| Controller | German Siemens PLC or TH-900C Korea or TEMI |
| Compressor | France's Tecumseh Brand or Germany |
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
Standard Met and Implemented:
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
CNS:3627,3385,4159,7669,8886;
JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: 8117,B268.
Features:
Do you agree with us?
| Minimum Order Qty: | 1 units |
| Price: | Negotiable |
| Payment Terms: | T/T, negotiable |
| Warranty | 14 months on parts (excluding the damages caused by the natural disasters, abnormal power, improper operation and maintenance, etc) |
| Delivery Time: | 20 working days after received 50% deposit |
| Packaging Details: | Packed in carton firstly, and then reinforced with plywood case for outer packing |
After sale service
1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 14 months warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
2. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
3. Good Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
Please feel FREE to contact us if you have any needs.
Large program environmental Temperature humidity chamber walk in freezer
