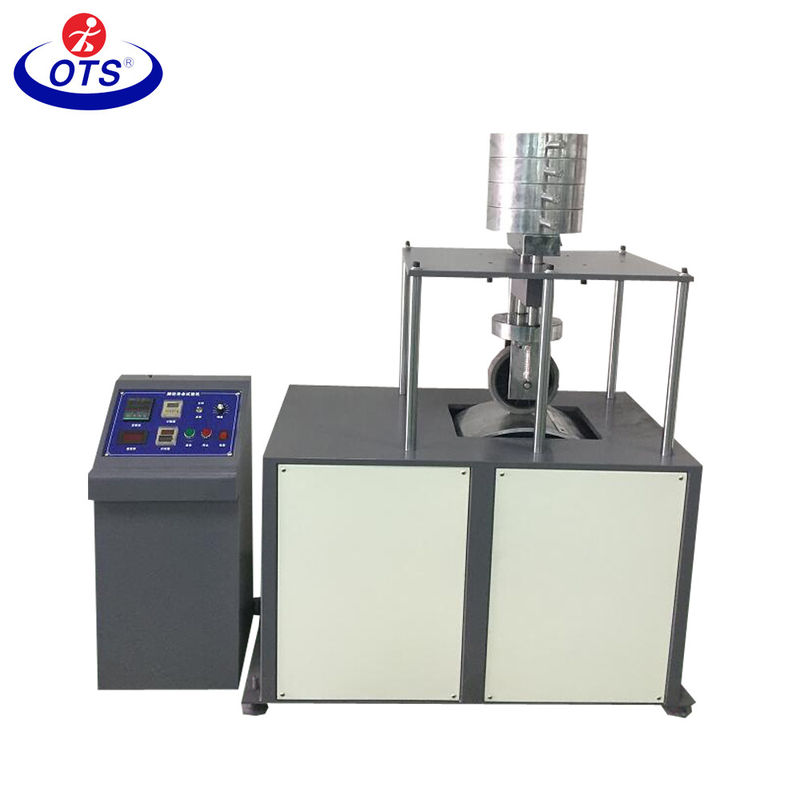

Walking Life Performance Friction Fatigue Tester / Caster Wheel Testing Machine

Walking Life Performance Friction Fatigue Tester / Caster Wheel Testing Machine
Walking Life Performance Friction Fatigue Tester / Caster Wheel Testing Machine Walking Life Performance Friction Fatigue Tester / Caster Wheel Testing Machine

Large Image :  Walking Life Performance Friction Fatigue Tester / Caster Wheel Testing Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE; ISO
Model Number: XB-OTS-200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped
Delivery Time: 20 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 350 sets per month
Detailed Product Description
Product Name: Caster Walking Life Performance Tester Max Load: 200Kg
Weights: Tray: 25kg/pc Obstacle Height: 3.2mm 2pcs; 4.8mm 2pcs
Obstacle Interval: 0.5m, 1m/pc Speed Range: 0.05~2000m/h Adjustable
Speed Unit: KM/H Humidity Fluctuation/uniformity: ≤±2.5 %R.H./≤±3.0% R.H.
High Light:

impact test equipment


test equipment for cell phones

Caster Walking Life Tester Casters Friction Fatigue tester Caster wheel testing machine




Based on European Standard EN12527 and National Standard GB/T-146888, this machine test casters by motivating a runner, the "dynamic test", "long distance walking test" and "static load test" can be controlled by instruments. The function consists of speed adjustment, speed display, walk distance, walk time, clockwise turn test, reverse turn test.
To simulate a real test environment and status, the sample is applied by weight.
Caster size: D25-D250mm




Max Load 200Kg Weights Tray: 25kg/pc Weights:25kg/19pcs
Obstacle Height 3.2mm 2pcs; 4.8mm 2pcs Obstacle interval 0.5m, 1m/pc
Roller Perimeter 2m(scale:0.5m) Roller Width 250mm
Speed Range 0.05~2000m/h Adjustable Speed Unit KM/H
Running Direction Clockwise, anti-clockwise Test Range of Caster Height D. 25~250 mm
Lifting Range of Tray 50~300 mm Static Pressure Tool 1 Set
Fixture of Casters 1 set Deviation of Test Stroke ≤±0.5m
Range of Test Stroke 0.05—99.9km Deviation of Test Time 0.1s
Test time of Rolling 10s ~ 99.9h Power 380V±10% 50HZ
Controller Size 950*450*330mm Machine Size (LWH) 1500*1200*1500mm
Weight 670KG Power 2.5KW
