| Model Numbe: | XB-OTS-1000 | Product Name: | Water Resistance Climatic Chamber Ipx1 Ipx2 Ipx3 Ipx4 Rain Spray Test Chamber |
|---|---|---|---|
| IP1/ 2 Dripping Hole:: | IP3 15 /Min;IP4 10/Min | Rain Pressure: | Speed Of Turntable Rpm |
| Speed Of Turntab: | 1~10 Adjustable | Swing Angle: | ±60°/±90°/±180°（-20°）(optional Setting) |
| Drop Test:: | 0.1~1.5°C/Min | Temperature Rising Speed:: | Ipx3. Ipx4 Swing Pipe: Rt-+80°C |
| Test Standard:: | JIS, ISO, IEC60529, DIN40050, GB4208 | ||
| High Light: | thermal test chamber,temperature cycling chamber |
||
Water Resistance Climatic Chamber Ipx1 Ipx2 Ipx3 Ipx4 Rain Spray Test Chamber
Waterproof Rating:
IPX-1 Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.
Unit is placed in its normal operating position.
IPX-2 Protected against falling water when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions -
tilted 15 degrees in each direction from normal operating position.
IPX-3 Protected against spraying water - Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.
IPX-4 Protected against splashing water - Same as IPX-3 but water is sprayed at all angles.
IPX-5 Protected against water jets - Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at
a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
IPX-6 Protected against heavy seas - Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at
a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.
IPX-7 Protected against water immersion - Immersion for 30 minutes at a depth of 1 meter.
IPX-8 Protected against water submersion - The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.
The main technical parameters
Water Resistance Climatic Chamber Ipx1 Ipx2 Ipx3 Ipx4 Rain Spray Test Chamber
| Model | XB-OTS-800 | XB-OTS-1000 | ||||
| Inner chamber size W×H×D(mm) | 800*800*800 | 1000*1000*1000 | ||||
| Exterior chamber size W×H×D(mm) | 1160*1640*960 | 1360*1840*1160 | ||||
| Water temperature | Normal atmospheric temperature | Normal atmospheric temperature | ||||
| Type of | Total flow rate | R1 | 1.8 | IP×1 | 1～1.5mm/min | |
| spray test | (L/min) | R2 | 3.2 | IP×2 | 3～3.5mm/min | |
| S1 | 24.5 | IP×3 | ±600;R:400;1.1L/min | |||
| S2 | 39.2 | IP×4 | ±1800;R:400;1.8L/min | |||
| Spray nozzle pressure | R1 | 0.1 | 1.Water flow rate of each hole is0.0.7L/min. | |||
| (kgf/c㎡) | R2 | 0.3 | 2.IP×3,radius 400mm,total 16 holes,water flow rate is 1.1L/min. | |||
| S1 | 1 | 3.IP×4,radius 400mm,total 25 holes,water flow rate is 1.81L/min. | ||||
| S2 | 3 | |||||
| Rotating speed of testing platform | 17RPM | 1RPM | ||||
| Rotating speed of spray nozzle | 23RPM | 1.Spraying tube is driven to move for 30º on each side along the vertical,4 seconds per round-trip. | ||||
| 2.Spraying tube is driven to move for 180º on each side along the vertical,12 seconds per round-trip. | ||||||
| Material | Inner chamber | SUS#304 | ||||
| External chamber | ||||||
| Other components | Chamber lamp,rain wiper,caster | |||||
| Power supply | AC 3phase 380v 60/50Hz | |||||
| Customization service | Non-standard or special requirements are all welcome | |||||
Main Functions:
1.Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.
2.The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.

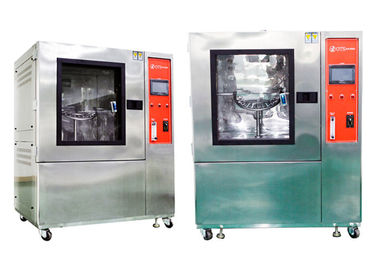

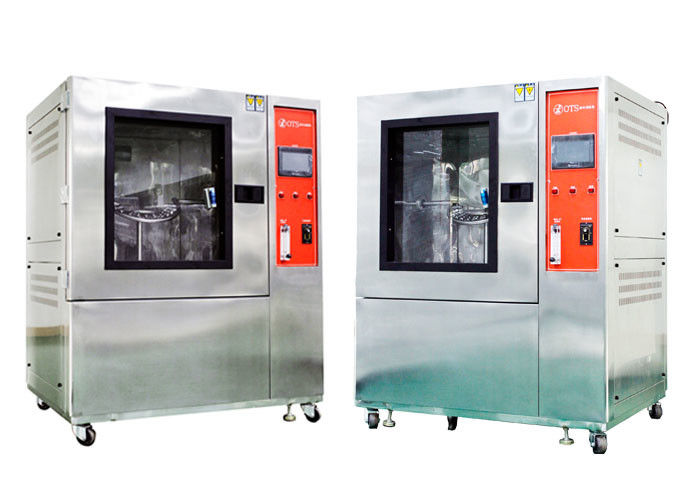

3.Swing pipe standard configuration: R600mm and R1000mm two types.Swing pipe inner diameter: Φ15mm.
4.DrillΦ0.4 holes and make the water spray to the center.The water pressure of the device entrance is equal to 10m water level, spraying water pressure is 80-100kpa.
5.Water spraying pipe swing angle: 120º,180º,360º, Vertical sides: 60º,90º,175º. Complete a swing(2*120º) time is 4S;Complete a swing(2*360º) time is 12S.
6.Manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
7.Use Mitsubishi PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
8.Servo drive mechanism, guarantee the pendulum pipe Angle of precision, the overall pendulum tube structure for hang a wall.
9. Water is recyclable for the chamber type, it is suitable for the small and light specimen; if you specimen is large and heavy, you can consider our separate type.
10. Our water proof test machines can meet test standard of IEC60529(IPX1,IPX2,IPX3,IPX4,IPX5,IPX6,IPX7,IPX8), JIS D0203 water proof test and other equivalent test standard.
Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer.
--Provide discount for many sets order.
--Do customer's request.
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--14 months warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts.
--Remote control technical consult.
--Free installation DVD.
--Maintenance plan.
Please feel FREE to contact us if you have any needs.
