Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-IPX56 | Product Name: | Electronic Environmental Waterproof Chambers ,IPx5 IPx6 Water Spray Test Chamber |
|---|---|---|---|
| Working Area Size: | 1000*1000*2700 Mm | Nozzle Bracket Size: | 800*800mm |
| Turntable Max Load: | 50KG | Spray Flow IP5: | IP5 (grade) 12.5 ± 1 (L / Min) |
| Spray Flow IP6: | IP6 (grade) 100 ± 5 (L / Min) | The Turntable: | φ500MM Speed: 3 ± 1R / Min |
| Test Standard:: | JIS, ISO, IEC60529, DIN40050, GB4208 | ||
| High Light: | temperature controlled chamber,benchtop environmental chamber |
||

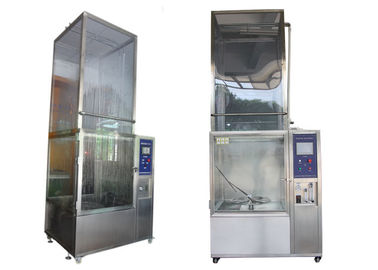

Electronic Environmental waterproof Chambers ,IPx5 IPx6 Water Spray Test Chamber
Waterproof Rating:
IPX-1 Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.
Unit is placed in its normal operating position.
IPX-2 Protected against falling water when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions -
tilted 15 degrees in each direction from normal operating position.
IPX-3 Protected against spraying water - Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.
IPX-4 Protected against splashing water - Same as IPX-3 but water is sprayed at all angles.
IPX-5 Protected against water jets - Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at
a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
IPX-6 Protected against heavy seas - Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at
a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.
IPX-7 Protected against water immersion - Immersion for 30 minutes at a depth of 1 meter.
IPX-8 Protected against water submersion - The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.
IPX9K adopts high pressure pump, spraying style heating device
The main technical parameters

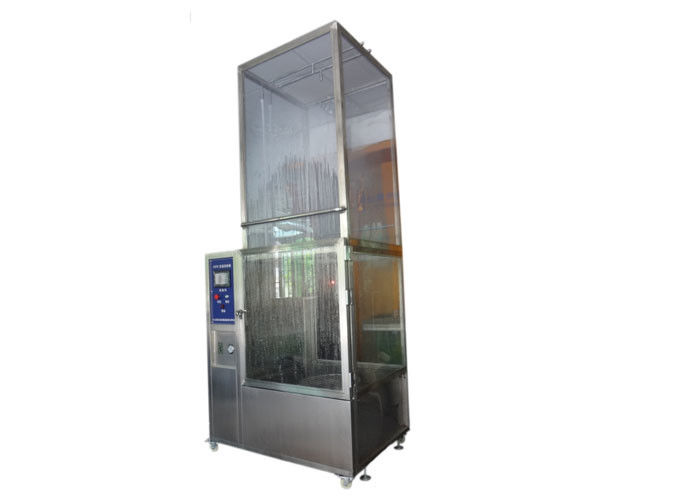

Electronic Environmental waterproof Chambers ,IPx5 IPx6 Water Spray Test Chamber
| The inner working chamber dimensions | 1000 × 1000mm ×2700mm(D*W*H) |
| The sprinkler system: water pump, pressure gauge, stationary nozzle holder, an area of Nozzle Bracket Size |
800mm × 800mm
|
| Turntable Max load | 50KG |
| The total size of chamber |
Around D1200×W1500×H3500mm Could be break up two parts for shipment |
|
Nozzle Installation |
Installed above the two nozzle heads. one piece IP5 nozzle and one piece of IP6 spray nozzle.10-120 ° angle adjustable |
| Diameter | six points |
| The inner diameter of orifice |
1 ~ φ6.3mm, IP5 (grade), 2 ~ φ12.5mm, IP6 (grade) |
| Water pressure | 100 ~ 150kpa (by flow regulator) |
| Distance from nozzle to enclosure surface |
Between 2.5m and 3m According to the standard IEC60529 |
| Spray flow |
IP5 (grade) 12.5 ± 1 (L / min) IP6 (grade) 100 ± 5 (L / min) |
| The turntable | φ500MM speed: 3 ± 1R / min |
| Environmental Temp ,Relative humidity | 15~40℃,＜70%R.H |
| Water Duration | 3,10,30,9999min (adjustable) |
| Recycling | water circulation system to ensure water recycling |
| By the water | the top surface of the product |
| Water pressure | water pressure gauge, water pressure can be displayed |
| Support |
as a test of tempered glass box outdoor waterproof wall, stainless steel square pass as a stent.
|
| The control system | Longhorn company developed touch-screen control system. |
| Power :Three-phase AC380V, 50Hz , 3KW ( can accept customized too ) | |
