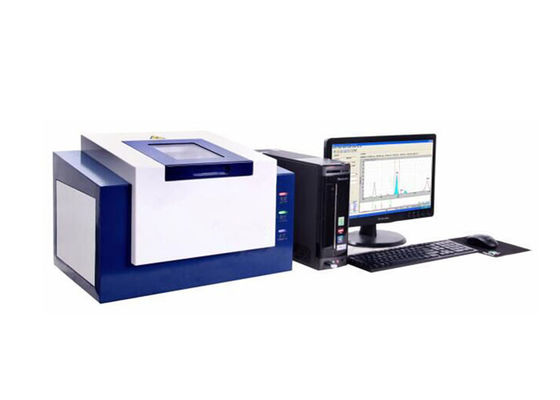

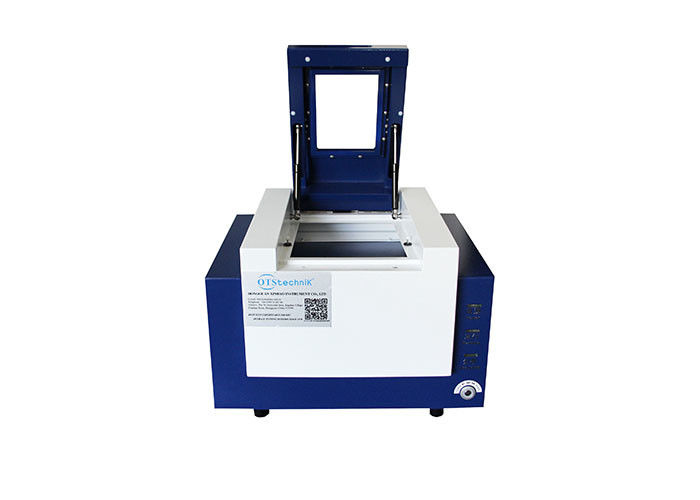

XRF Elemental Analyzer Φ0.1mm Φ0.3mm Lab Test Chamber

XRF Elemental Analyzer Φ0.1mm Φ0.3mm Lab Test Chamber
XRF Elemental Analyzer Φ0.1mm Φ0.3mm Lab Test Chamber
video play

Large Image :  XRF Elemental Analyzer Φ0.1mm Φ0.3mm Lab Test Chamber

Product Details:
Place of Origin: guangdong
Brand Name: OTS
Model Number: XB-OTS-SPR1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for RoHS Energy Dispersive X-Ray Fluorescence Spectrometer XRF Analyzer
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Name: XRF Elemental Analyzer Measurement Time: 60-240s
Warranty: 1 Year Types Of Analysis Samples: Solid, Liquid, Powder, Paste, Etc
Test Range: 1ppm—99.99% Test Element Range: Elements In S-U
Analytical Detection Limition: 1ppm Origin: China
Power:: 220V 50HZ
High Light:

Φ0.1mm xrf sulfur analyzer


Φ0.3mm xrf lead paint analyzer

China RoHS and Halogen-free XRF Elemental Analyzer with Pb, Cd, Hg and PBB




RoHS Directive Control Products: Household Appliance/ Information Technology and Communications Equipment / Electric Tool /Toys and other equipment.

Halogen-free Directive Control Products: Products which use flame retardant containing Cl, Br and other elements as raw material.


It’s for RoHS Directive control: large household appliances, small household appliances, information technology and communication equipment, electric tools, toys and other equipment.
For halogen-free instruction control: products that use flame retardants containing elements such as Cl,Br as raw materials.
Analysis and content Test of elements in Copper Alloy, Ferroalloy, Aluminum Alloy, Titanium Alloy, Superalloy and all kinds of Hybrid Alloy

XRF Elemental Analyzer Φ0.1mm Φ0.3mm Lab Test Chamber 0




1.Overall dimensions of the instrument 510*380*415mm(W*D*H)
2.Test space 360mm×330mm×100mm(W*D*H)
Visualize the sample bin and observe the sample during the test
3.Spot size Φ0.1mm,Φ0.3mm,Φ0.7mm,Φ1.2mm,Φ2mm,Φ5mm,Φ7mm
4.Weight 35kg
5.Working temperature 15-30ºC
6.Working Relative humidity: ≤75% (non-condensing)
7.Test element range: elements in S-U
8.Function description Can be applied to RoHS directive, halogen-free directive, WEEE directive, ore, alloy analysis; Pb (lead), Cd (cadmium), Hg
(mercury), total Cr (chromium) and halogen total Br (bromine) in electronic and electrical plastic products , Cl (chlorine)
element control.
9.Types of analysis samples Solid, liquid, powder, paste, etc .;
10.Test range: 1ppm-99.99%
11.Measurement time 60-240s (software automatic adjustment)
12.Warranty period Two-year warranty (14 months), including three core components: X-ray
Tube, detector, high voltage power supply.
13.Detector Amptek X-123, resolution 145eV, full set of original imported integrated (probe + digital pulse processor)
14.X-ray tube The maximum power is 50W, molybdenum target side window X-ray tube (Be), service life: more than 20,000 hours.
15.High voltage power supply Maximum power 50W (50kV, 2mA) (0 ~ 2mA continuously adjustable)
16.Input power supply AC 220V±10%,50Hz
17.Maximum power 330W
18.Filter / collimator 6 kinds of composite filters; 6 kinds of collimators; automatic switching;
19.Camera 5 million pixels
20.Software algorithm Empirical coefficient method, internal standard method, standard curve method, basic parameter method
22.Software operating system Open analysis model function, triple-ray protection system (software, hard
Parts, labyrinth design), automatic warning system for opening test, self-protection for overvoltage
Protection, self-recovery. Circuit hardware safety interlock, misoperation 0.1uS fast cut
X-ray source
23.Report format WORD, PDF, EXCEL, report format can be set according to customer needs.
24. Sample shape: Solid, liquid, powder, etc., not limited
25. Sample thickness: Not limited
26. Test requirements (features) 1.Positionable test;
2. The test completion software automatically determines whether it is qualified or not, and automatically exports the test report
with product pictures and spectrum diagrams;
3. There is a spectrum of the test elements and a spectrum comparison function.
27.Sample test diameter: Φ0.1mm-Φ25mm optional
28.Analytical detection limition: 1ppm
29.RoHS measurement accuracy: The measurement accuracy deviation of samples around 1000ppm is ± 50ppm; around 100ppm is ± 10ppm; the maximum detection limits of
Cr, Hg, Pb, and Cd are ≤2ppm
