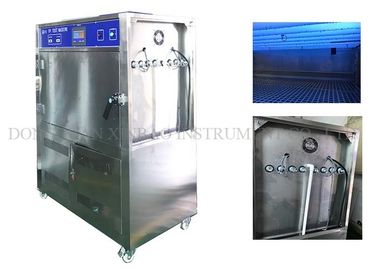

Solar Radiation UV Weathering Test Chamber Stable Working BTHC Control Mode/accelerated weathering chamber

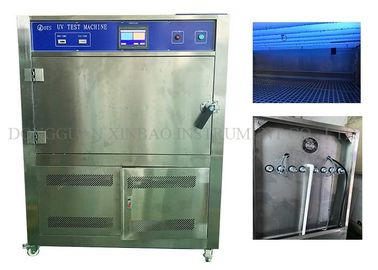

Simulate Solar Radiation UV Weathering Testing Machine /UV Aging test Chamber

Usages:

UV Accelerated Weathering Tester is the world's most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It's used widely in the industry, such as printing ink, paint, pastics, print, packaging,motor van, metal, electron, medical... and so on.

UV Accelerated Weathering Tester,simulates damaging effects of long term outdoor exposure of materials and coatings by exposing test samples to varying conditions of the most aggressive components of weathering - ultraviolet radiation, moisture and heat. A UV accelerated weathering chamber uses fluorecent lamps to provide a radiation spectrum centered in the ultraviolet wavelengths. Moisture is provided by forced condensation, and temperature is controlled by heaters.

Technical Parameters :

Feature :

* Our UV aging test chamber series includes 4 different types of UV aging test boxes, QUV/se, QUV/basci, QUV/spray and QUV/cw. It can meet the testing standards of coatings, ink, adhesives, plastic products and other industries.

• Different test methods and procedures: Automatic control, real-time monitoring and display.
• The sample frame temperature: Sample temperature BPT directly display and automatic control.
• Condensation control: Condensation directly display and automatic control.
• Circular manner: Light, condensation and spray directly display and automatic control.
• Light irradiance: Testing process can be set light irradiance energy and time and monitoring.
• Spray water: Adjustable and display, automatic control, test process can be set spraying time.
• The calibration function: Automatic temperature calibration, convenient, fast.
• Alarm function: Automatic alarm .
• Water supply way: Automatic feed water.
• PC connection method : RS232

Chamber Structure:

Chamber using CNC equipment production, advanced technology, flowing lines, nice appearance

The chamber is made of SUS#304 grade stainless steel plate with 1.0mm thickness and the bottom of the chassis has a water storage tank, and its heating, generating water vapor, hot steam so that can maintain the relative humidity of the test chamber at 95%RH, and to maintain a relatively high temperature.

The test piece is actually constitute the side walls of the chamber, so that the back of the specimen exposed to the cold in the indoor air, indoor air as led to the specimen surface temperature drops to a level lower than the steam temperature of a few degrees. This different temp is led to the emergence of the specimen, its surface is always in the entire condensation cycle generating liquid water condensation.

This condensation product is very stable, pure distilled water, pure water to improve the reproducibility of the test while avoiding stains. inside the duct single round-robin system, one only imported axial fan to improve air flow, heating capacity significantly improved chamber temperature uniformity

Lamps:UVA or UVB lamp, 40W/each lamp

UVA-340 is the best choice for the simulated solar ultraviolet excellent analog critical short wavelength range of the solar spectrum, the wavelength range spectral range 315 to 400nm. UVA-340 produced only UV wavelength spectrum can be found in the sun.

Although these natural wave length UV light can maximize the accelerated test, but it will also cause some of the material does not match the together the actual degradation of destruction.

Lamp life:1600~1800h(Imported lamps).

Pipe run after every 400 hours, the upper and lower lamp replacement in turn, to ensure that each lamp uniform radiation, while ensuring that any time the output power is always maintained at the average value, this average is always remained relatively stable, Do not change over time.

In the light after the 400-450 - h, each row of lamp tubes need to change a fluorescent tube

When replacement lamp tubes, should wipe dry water dish and clean, and avoid the formation of scale

Water and consumption:clean water or distilled water 8 liters / day
