Elecrtrical 304 Steel Body Material Thermal Industrial Drying Oven Cart Type

China Elecrtrical 304 Steel Body Material Thermal Industrial Drying Oven Cart Type supplier
Elecrtrical 304 Steel Body Material Thermal Industrial Drying Oven Cart Type supplier Elecrtrical 304 Steel Body Material Thermal Industrial Drying Oven Cart Type supplier

Large Image :  Elecrtrical 304 Steel Body Material Thermal Industrial Drying Oven Cart Type

Product Details:

Place of Origin: China
Brand Name: OTS
Certification: CE/ISO
Model Number: XB-OTS-1000L

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export plywood case suitable for different and long distance transportation
Delivery Time: 20 days after payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets/Month
Contact Now
Detailed Product Description
Type: Cart-type Material: SS 304 Steel
Temperature Range: RT+10℃~300℃ Temp Control Fluctuation: ± 1.5℃
Temperature Resolution: 0.1 Power: 4.8KW
Heating Up Time: RT~160℃ About 28min Use Of The Environment: Allowable Temperature Range Of 0 ~ 35 ℃

Elecrtrical 304 Steel Body Material Thermal Industrial Drying Oven Cart Type





Application Of Dryer :



The Dryer applies in drying, curing, was-melting, solidifying and sterilizing of the fields of colleges or universities, industrial mining enterprise, medicine and health and scientific research units etc.



Specification:



  Product name High Temperature oven Model Number XB-OTS-1000L
  Power 1 phase 220V 50Hz Cable Port External Power
  Interior size(W*H*L) 100*100*100cm(W*H*D)

Exterior size

(W*H*L)

119*150*114cm(W*H*D)
  Customized size Acceptable Control method PID ,PID automatically adjust the output


Advantages:



1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted.



2.The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.



3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch.



4.Timing device for LED Digital constant timing, providing complete use Conditional design.



5.Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.



6.Machine continuous running time is above three month



7.Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down.


  Temp control fluctuation ± 1.5℃ Temperature range



RT+10℃~300℃




  Accuracy ±0.5℃ Temperature resolution 0.1
  Temperature uniformity ±2℃ Power



4.8KW






Key set of

data input

Resolution 0.1 ℃

ntegration time(IT):

0~3600s

Derivative time(DT):

0~900s

Built-in timer function



Protection device

Motor overload protection
Buzzer
Fault indicator
No fuse protection switch






Heating up time

(NO-load)

RT~160℃ about 28min



  Temp controller The microcomputer automatically calculus controller
  Chamber materials

1.Inner chamber materials:SUS stainless steel plate

2.External chamber materials:Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating.

3.Insulation material: aluminum silicate glass wool

4.The clapboard Material: Stainless Steel

5.Stainless steel electric heater Material: fin heat pipe type

6.Time control: 0 ~ 999H/M/S adjustable.

7.The rmometry body: T thermocouple

  Air supply method

Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not cause direct damage of high temperature ,when open the door.



  Use of the environment

Allowable temperature range of 0 ~ 35 ℃





Characteristics of Dryer :



1. The deyer is made of high quality cold-rolled steel plate and the electrostatic spraying on the surface. It has new appearance. It is durable.

2. The working room of our drying oven adopts high quality stainless steel plate or cold-rolled galvanized steel sheet with the advantages of high temperature resistance, corrosion resistant and no dark smoke.

3. Dryer has reasonable forced ventilation and circulation or natural convection structure. The internal of working room of drying oven has uniform temperature.

4. Movable pull net stand could increase store space of articles interior.

5. Double-layer tempering glass observation window in the middle of the door is easy for observing the heating situation in the working room at any time.

6. Electric control about drying oven : the use of advanced non-contact circuits, with no noise, high reliability characteristics. Microcomputer intelligent temperature control instrument, a temperature control accuracy, stability, good performance, limit alarm, automatic power-off and so on.



Major technical parameter about Electric Thermostatic Dryer :

(if other drying oven technical parameter is demand, please contact Ada,tks )



This small high temperature laboratory oven is designed and manufactured accord to the requirements of IEC 60884, IEC60598 and relevant standards. It is use to simulate a high temperature environment to test the ability of material to withstand thermo-mechanical stress. This machine can be wide used in many industries such as Electrical Appliances, Electrical wire accessories, luminaries, motors, connectors, etc.

This machine has the advantages of easy operate, fast heating, high precision, temperature be even and stable.

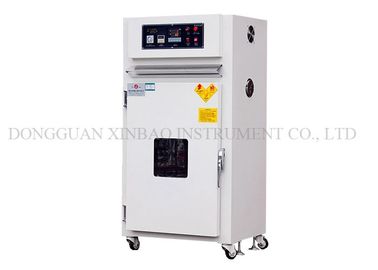

Elecrtrical 304 Steel Body Material Thermal Industrial Drying Oven Cart Type

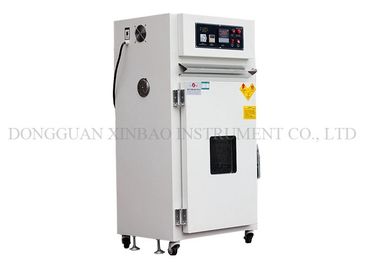

Elecrtrical 304 Steel Body Material Thermal Industrial Drying Oven Cart Type
