LCD Display Universal Tensile Testing Machine 0.01 - 500mm/min Speed Range/Mechanical Tensile Testing Machine

China LCD Display Universal Tensile Testing Machine 0.01 - 500mm/min Speed Range/Mechanical Tensile Testing Machine supplier

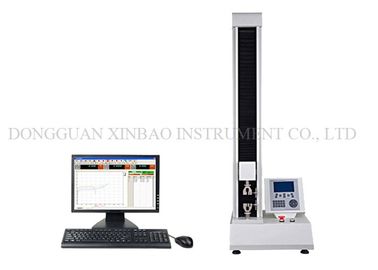

Large Image :  LCD Display Universal Tensile Testing Machine 0.01 - 500mm/min Speed Range/Mechanical Tensile Testing Machine

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE ISO
Model Number: XB-OTS-600A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit/Units (Min. Order)
Price: Negotiable
Packaging Details: Strong standard wood case for Universal Tensile Testing Machine and Equipment Price
Delivery Time: about 15 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 226 Unit/Units per Month
Contact Now
Detailed Product Description
Usage: Universal Testing Machine Power: Electronic
Display: LCD ( Linkable To PC ) Max.Acceleration(G): 17
Max Capacity: 2,5,10,20,50,100,200,500kgf Can Be Setting Test Speed: 1~500 Mm/min Selectable
Stroke Resolution: 0.1mm Test Stroke: 600mm (without Grips)
Force Precision: ±0.5%

Universal Tensile Testing Machine and Equipment



Universal Tensile Testing Machine and Equipment:

Introduction:

Universal Tensile Testing Machine and Equipment is the double columns pulling and pressure testing machine,which is suitable for testing strength of plastic film, composite materials, soft packaging materials, plastic hose, adhesive, adhesive tape, adhesive sticker, medical patch, protective film, release paper, combination cover, metal foil, nafion, backplane materials, non-woven fabric, rubber, paper fiber and other materials in tension, compression, bending, shearing, tearing and peeling, puncture, three point bending condition and relevant physical parameters.
This machine is Widely used in textile manufacturing, furniture manufacturing industry related materials, all kinds of wire mesh, adhesive sticker pressure sensitive adhesive tape, film materials, medical electronic equipment protective film related industries.



Universal Tensile Testing Machine and Equipment

Model XB-OTS-600A
Max capacity 5kg,10kg,25kg,50kg,100kg,250kg,500kg,
1000kg,2000kg,5000kg(It is optional.) can be setting
Induction method : Precision load cell (sensor)
Max. Load Capacity : 5000kg ( accept customized service )
Force Resolution/Accuracy: ± 0.5%
Accuracy class : 0.5
Resolution: 1/1,000,000
Test width: 400mm(Standard specifications
special specifications can be customized)
Test stroke : Max.700 mm( included the fixture)
Stroke Resolution: 0.01mm
Speed range: 0.01-500mm/min
Machine Dimension (W*D*H) 580*580*1250mm (W*D*H)
Power system: Servo drive + servo motor + precision ball screw
transmission (Panasonic or Taiwan king serve import)
Weight: About 65~180kg
Power : 1 phase 220V 50/60Hz
Packing Standard Export plywood case
Displacement Control: Displacement encoder count with four frequency technology
So that the displacement of four times
the resolution can up to 0.0005mm



Force system: servo drives + Servo motor + precision ball screw drive

Control system:Mechanical transmission + TM2101 + Pulse Command and Control System control

Measurement and Control System : TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher



Obtain data: The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing

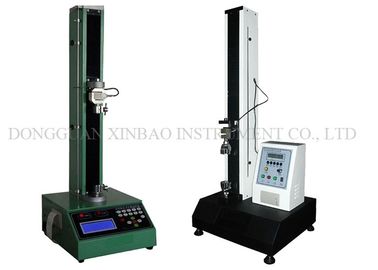

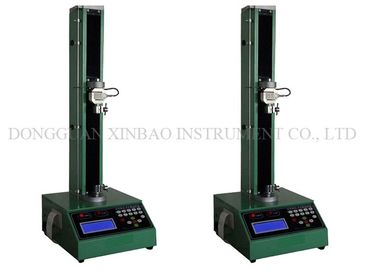

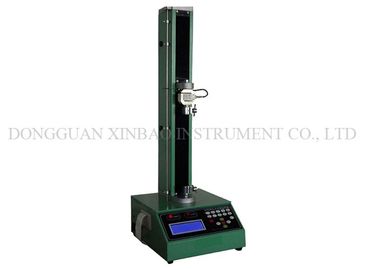

LCD Display Universal Tensile Testing Machine 0.01 - 500mm/min Speed Range/Mechanical Tensile Testing Machine

Software functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics



Corresponding Standard:

ASTM D903,GB/T16491,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7 ,GB 13022,GB 8808,GB 1040,GB 4850,GB 7753/7754,GB 453,GB/T 17200,GB/T 16578,GB/T 7122,GB/T 17590,ASTM E4,ASTM D828,ASTM D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 and other standards.
