Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test

Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test
Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test

Large Image :  Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE
Model Number: XB-OTS-600(100T)
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets (Min. Order)
Price: Negotiable
Packaging Details: Strong standard wood case for Utm Machine Price,Universal Testing Machine Manufacturer,Material Testing Equipment Factory Supply
Delivery Time: 20 day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 268 Set/Sets per Month
Detailed Product Description
Usage: Universal Testing Machine Grips: Customized Depends Of Different Test
Control Mode: Microcomputer Or PC Control Max.Acceleration(G): 17
Max Capacity: 4KN-1000KN Test Speed: 0.5~500 Mm/min
Stroke Resolution: 0.01mm Test Stroke: 1200mm
Force Precision: ±0.5%
High Light:

tensile strength testing equipment

,

universal tensile tester

Utm Machine Price,Universal Testing Machine Manufacturer,Material Testing Equipment Factory Supply


Applicable Industries

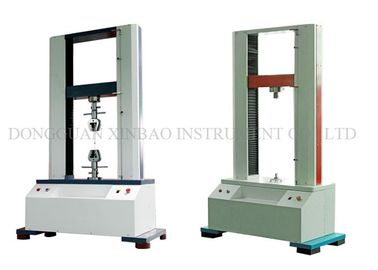

Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test 0

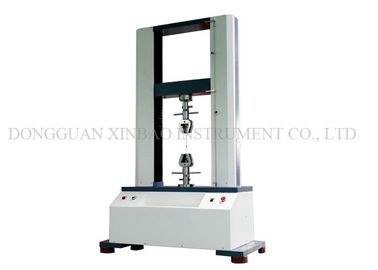

Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test 1

Utm Machine Price,Universal Testing Machine Manufacturer,Material Testing Equipment Factory Supply can test various materials (both finished and semi-finished products of tensile strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .
Latest Tensile Testing Equipment,Utm Tensile Strength Test Machine,Universal Tensile Strength Testing Machine Price is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.


Specification

Model XB-OTS-600(100T)
Force capacity 1000kg,2000kg,5000kg(It is optional.) can be setting
Induction method Precision load cell (sensor)
Max. Load Capacity 1000KN
Force Resolution/Accuracy ± 0.5%
Accuracy class 0.5
Resolution 1/1,000,000
Test width 400mm(Standard specifications
special specifications can be customized)
Test stroke 1200mm
Stroke Resolution 0.01mm
Speed range 0.5-500mm/min
Machine Dimension (W*D*H) 800×530×1600mm (L*W*H)
Power system Servo drive + servo motor + precision ball screw
transmission (Panasonic or Taiwan king serve import)
Displacement Control Displacement encoder count with four frequency technology
So that the displacement of four times
the resolution can up to 0.0005mm

Force system: servo drives + Servo motor + precision ball screw drive

Control system:Mechanical transmission + TM2101 + Pulse Command and Control System control

Measurement and Control System : TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher

Obtain data: The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing

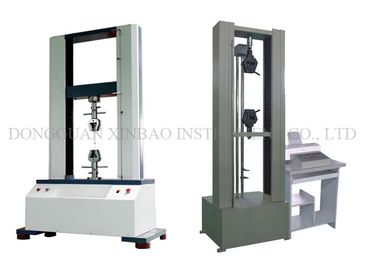

Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test 2
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics


Corresponding Standard:
ASTM D903,F2258,GB/T 2790/2791/2792, CNS-11888,JIS K6854,GB/T 6329,BS EN 14410-2003,YY/T 0729,GOST 21751 and other standards.

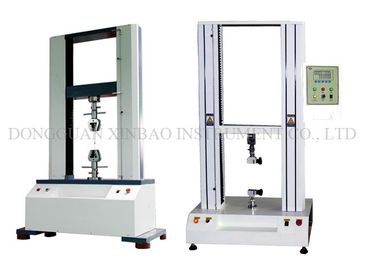

Force Precision ±0.5% Universal Tensile Testing Machine 800*530*1600mm Dimension/universal testing machine tensile test 3
