Ultra Low / High Thermal Cycling Chamber 100*100*80cmInner Size Fast Delivery Constant Temperature Humidity Test Chamber

China Ultra Low / High Thermal Cycling Chamber 100*100*80cmInner Size Fast Delivery Constant Temperature Humidity Test Chamber supplier

Large Image :  Ultra Low / High Thermal Cycling Chamber 100*100*80cmInner Size Fast Delivery Constant Temperature Humidity Test Chamber

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE; ISO
Model Number: XB-OTS-800

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped
Delivery Time: 20 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 350 sets per month
Contact Now
Detailed Product Description
Product Name: Easy Operation Accurate Ultra-low And High Temperature Temperature Test Chamber Temperature Range: -70°C To 180°C
Temp Control Fluctuation: ≤±0.5℃ Temp Uniformity: ≤±2℃ (Put 9 Sensor Into Inner Chamber With 9 Different Location To Get Uniformity )
Inner Size (W*H*D): 100*100*80cm Usage: Environmental Test Equipment

Easy operation accurate ultra-low and high temperature temperature test chamber





Parameters:



Model XB-OTS-80 XB-OTS-150 XB-OTS-225 XB-OTS-408 XB-OTS-800 XB-OTS-1000
Inner Chamber Size W*H*D(cm) 40*50*40 50*60*50 60*75*50 80*85*60 100*100*80 100*100*100
External Chamber Size W*H*D(cm) 90*142*100 100*152*113 110*167*113 130*177*123 150*192*144 150*192*163
Inner Chamber Volume(L) 80 150 225 408 800 1000
Temperature Range -70°C~+150°C(180°C
(A:-20℃ B:-40℃ C:-60°℃ D:-70℃) (Optional)
Humidity Range Without

Control panel

Controller+ operation button+over heating protection device +RS232 and USB interface

Chamber materials

SUS#304 stainless steel for Inner chamber;

Steel plate for external chamber with thickness

Operation condition

Temperature:5℃~35℃

RH:≤85% Air pression:86kPa~106kPa

Applications

For all types of electronic products quality inspection , electric appliance, and communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries products.

Package and shipment

(1). Strong standard wood case, inner plastic films wrapped.

(2). Usually we delivery the equipment by air,by sea or by express.

Delivery Time  20 days after getting the payment



Design Standard:


GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6

Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature

EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle

IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle

EIA - 364-31C temp resistance GB/T2423.3 constant heat test method

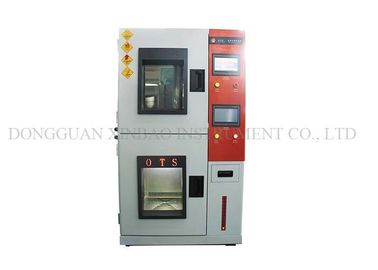

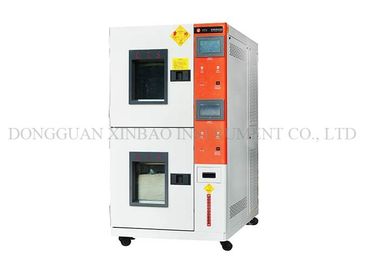

Pictures:

Ultra Low / High Thermal Cycling Chamber 100*100*80cmInner Size Fast Delivery Constant Temperature Humidity Test Chamber

Warranty:



A year's quality guarantee period starting from the date of acceptance of the equipment, in guarantee period, completely free maintenance (except natural disaster, abnormal power, people improper use and maintain causing the damage), in the condition of the buyer abiding by the rules of custody, use and installation, because of the test chamber manufacturing quality problem can't work normally, after the supplier be notified, in accordance with the service commitment of time will help the buyer solve the problem by email, if the buyer need that supplier send maintenance personnel to solve it,the buyer only need pay travel charge.
Equipment problems after warranty period, the supplier promise to give solution on time, discretion charge maintenance costs and the cost of raw materials.



Main Products:



Ultra Low / High Thermal Cycling Chamber 100*100*80cmInner Size Fast Delivery Constant Temperature Humidity Test Chamber



Why choose us:


Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

Ø Provide Installation
Ø Training (Training customer employees)
Ø Provide Internal Calibration Report  before delivery
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair



Our Company:



OTS was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
