504L Climatic Temperature And Humidity Chamber With Rotary Vane Type Vacuum Pump

China 504L Climatic Temperature And Humidity Chamber With Rotary Vane Type Vacuum Pump supplier

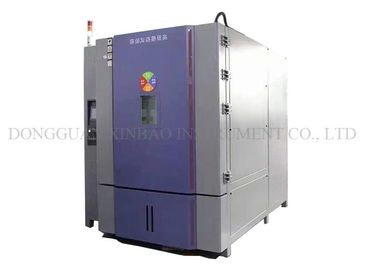

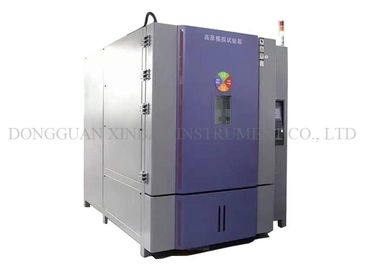

Large Image :  504L Climatic Temperature And Humidity Chamber With Rotary Vane Type Vacuum Pump

Product Details:

Place of Origin: China
Brand Name: OTS
Certification: CE Certification
Model Number: XB-OTS-504

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for 504L Climatic Test Combined Temperature Altitude Humidity Testing Chamber
Delivery Time: 45 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Contact Now
Detailed Product Description
Model Numbe: XB-OTS-504 Product Name: 504L Climatic Test Combined Temperature Altitude Humidity Testing Chamber
Temperature Control: -70°C ~ +150 °C Humidity Control: 20%~98% RH
Refrigerant: Environmental Friendly R404A/R23 Temp Fluctuation: ±0.5%
Pressure Range: 101kpa ~1kpa Usage: Universal Testing Machine,environmental Test Chambers
Cooling Rate: 0.7c~1.0c/Min (Average) Pump: Rotary Vane Type Vacuum Pump

504L Climatic Test Combined Temperature Altitude Humidity Testing Chamber



Introduction:



504L Climatic Test Combined Temperature Altitude Humidity Testing Chamber is used in different industries like the instruments and meters, electrical products, materials, spare parts, equipment, etc, but mainly in aviation, aerospace, information, electronics and other industries. This machine can be operated at a low pressure, high temperature, low temperature, under the effect of single factor or multiple conditions at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen.

504L Climatic Temperature And Humidity Chamber With Rotary Vane Type Vacuum Pump





Technical parameters:



Model XB-OTS-504M
Inner Size (D*W*H)mm 800*700*900
Capacity(KW) 15
Chamber Volume(L) 504
Specifications Temp range -70℃~+150℃
Temp fluctuation ±0.5%
Temp deviation ≥100℃, ±3.0℃(at 101kPa, ATM no load)
<100℃, ±2.0℃(at 101kPa, ATM no load)
Cooling rate 0.7℃~1.0℃/min (Average)
Pressure range 101kPa ~1kPa
Pressure accuracy ±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa)
Depressurization rate 101kPa ~1kPa≤30mins (Room temp)
Pressure recovery rate 10kPa/Min(adjustable)



Features


1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application



FAQ:



1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery

time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider

making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.



504L Climatic Temperature And Humidity Chamber With Rotary Vane Type Vacuum Pump





Altitude Chamber related products



Model XB-OTS252M XB-OTS-1000M XB-OTS-2160M
Inner Size (D*W*H)mm 600*600*700 1000*1000*1000 1200*1400*1200
Capacity(KW) 11 16 18
Chamber Volume(L) 252 1000 2160
Specifications Temp range -70℃~+150℃ -70℃~+150℃ -70℃~+150℃
Temp fluctuation ±0.5%
Temp deviation ≥100℃, ±3.0℃(at 101kPa, ATM no load)
<100℃, ±2.0℃(at 101kPa, ATM no load)
Cooling rate 0.7℃~1.0℃/min (Average)
Pressure range 101kPa ~1kPa
Pressure accuracy ±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa)
Depressurization rate 101kPa ~1kPa≤30mins (Room temp)
Pressure recovery rate 10kPa/Min(adjustable)



Please feel FREE to contact us if you have any needs.



Low Pressure High Low Temperature Altitude Test Chamber Climate Simulation
