20kPa ~60kPa Low Pressure Temperature Humidity Chamber for Aerospace products testing

20kPa ~60kPa Low Pressure Temperature Humidity Chamber for Aerospace products testing
20kPa ~60kPa Low Pressure Temperature Humidity Chamber for Aerospace products testing 20kPa ~60kPa Low Pressure Temperature Humidity Chamber for Aerospace products testing 20kPa ~60kPa Low Pressure Temperature Humidity Chamber for Aerospace products testing

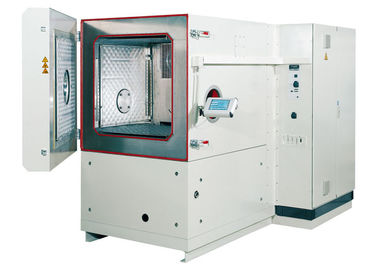

Large Image :  20kPa ~60kPa Low Pressure Temperature Humidity Chamber for Aerospace products testing

Product Details:
Place of Origin: China
Brand Name: OTS
Certification: CE Certification
Model Number: XB-OTS-1000M
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for Temperature Humidity and Low-pressure Altitude Test Chambers for aerospace test
Delivery Time: 45 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Model Numbe: XB-OTS-1000M Product Name: Temperature Humidity And Low-pressure Altitude Test Chambers For Aerospace Test
Temperature Control: -70°C ~ +150 °C Humidity Control: 20%~98% RH
Body Materials: SUS#304 Stainless Steel Plate Controller: OTS Designed Controller With LCD
Pressure Range: 101kpa ~1kpa Usage: Universal Testing Machine,environmental Test Chambers
Pump: Rotary Vane Type Vacuum Pump
High Light:

high low temperature chamber

,

stability test chamber

 Temperature Humidity and Low-pressure Altitude Test Chambers for aerospace test



Introduction:



Temperature Humidity and Low-pressure Altitude Test Chambers for aerospace test is used in different industries like the instruments and meters, electrical products, materials, spare parts, equipment, etc, but mainly in aviation, aerospace, information, electronics and other industries. This machine can be operated at a low pressure, high temperature, low temperature, under the effect of single factor or multiple conditions at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen.

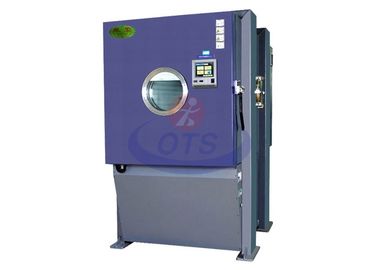

20kPa ~60kPa Low Pressure Temperature Humidity Chamber for Aerospace products testing 0

Technical parameters:



Inner Size W1747*H800*D720mm
External Size (About) W2197*H2200*D2670mm
Temperature Range -6℃~+43℃
Temperature Fluctuation ≤±0.5℃(Atmospheric pressure, no load, constant state)
Temperature Uniformity ≤±2℃(Atmospheric pressure, no load, constant state)
Temperature Deviation ≤±2℃(Atmospheric pressure, no load, constant state)
Humidity Without
Rise And Fall Rate

Air temperature: -40 ℃ → +85 ℃, the whole average ≥ 1 ℃ / min, atmospheric pressure, no load

Air temperature: +85 ℃ → -40 ℃, the whole average ≥ 1 ℃ / min, atmospheric pressure, no load

Pressure Range 20Kpa-60Kpa
Buck Rate

Normal pressure ~ 10kPa step-down time ≤ 30min (step-down rate control)

Pressure recovery rate: ≤10.0kPa / min (boost rate control)

Pressure Deviation

When the pressure is ≥40KPa: ≤ ± 2KPa

When the pressure is 4KPa ~ 40KPa: ≤ ± 5%

Pressure ≤ 4KPa: ≤ ± 0.1KPa

Meet The Standard GB / T 2423.21-2008 Basic environmental test procedure for electric and electronic products - Test M Low pressure test method
Pollution, Electromagnetic Radiation Meet the relevant standards
Noise ≤80dB
Total Power About 40 KW
Voltage 380V±10%; 50 Hz;Three-phase four-wire + ground wire

The technical data of the above products are in the temperature of 25 ℃, relative humidity ≤85% RH, (cooling water temperature 5 ~ 28 ℃, water supply pressure 0.2Mpa ~ 0.4Mpa), the test box no load, temperature / pressure Constant two hours after the conditions measured.



Working Principle】
Pneumatic Working Principle The central controller detects the real-time signal from the sensing element and compares it with the set pressure signal to obtain a comparison signal. The control device outputs a bit switch signal to control the opening and closing of the vacuum pump valve and the high vacuum pneumatic ball valve. To achieve the purpose of automatic control pressure. Restore the pressure process, when the need to restore pressure, then open the high vacuum baffle valve, filled by the inflatable joints required gas
Temperature Working Principle The central control system is amplified according to the temperature signal collected in the box, the analog / digital conversion, the non-linear correction and the temperature set value (target value) are compared, the resulting deviation signal by the PID operation, the output adjustment signal automatically Control the size of the output power of the heater, so that the heating and heat dissipation in the laboratory to achieve a dynamic balance, and ultimately achieve the purpose of constant temperature.




Features
Standard configuration
Two sample holders; an observation window; φ25 or φ50 cable hole.

Optional parts
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.

Structure
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.






1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application



FAQ:



1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery

time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider

making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.

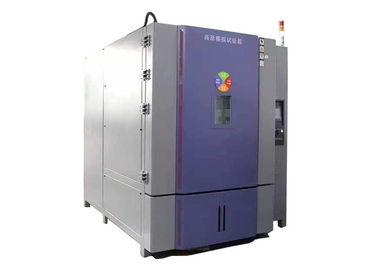

20kPa ~60kPa Low Pressure Temperature Humidity Chamber for Aerospace products testing 1
