Packaging Drop Test Machine 1 / 2 HP Horsepower Electric Transmission

Packaging Drop Test Machine 1 / 2 HP Horsepower Electric Transmission
Packaging Drop Test Machine 1 / 2 HP Horsepower Electric Transmission Packaging Drop Test Machine 1 / 2 HP Horsepower Electric Transmission Packaging Drop Test Machine 1 / 2 HP Horsepower Electric Transmission Packaging Drop Test Machine 1 / 2 HP Horsepower Electric Transmission

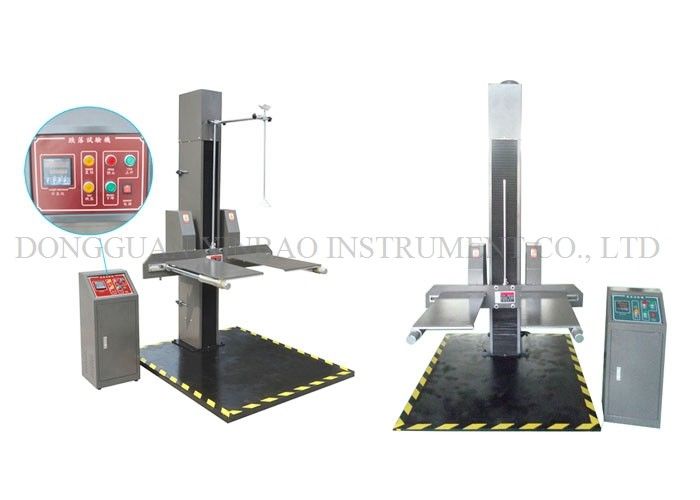

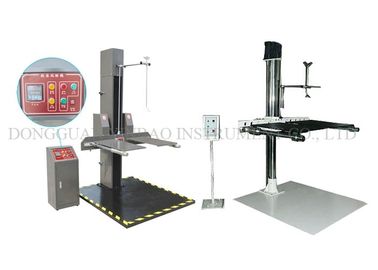

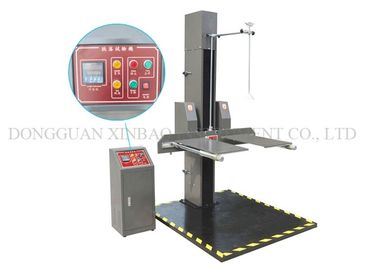

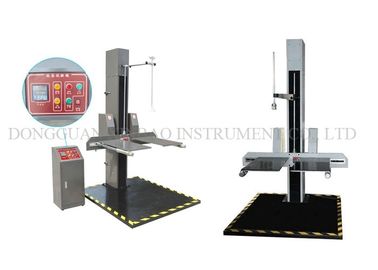

Large Image :  Packaging Drop Test Machine 1 / 2 HP Horsepower Electric Transmission

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE ISO
Model Number: XB-OTS-22B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units (Min. Order)
Price: Negotiable
Packaging Details: Strong wooden case for Drop Test Machine Mobile Drop Impact Tester
Delivery Time: 15 days after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 150 Unit/Units per Month
Detailed Product Description
Drop Method: Face, Edge, Angle Specimen Max Size: Ize: 1000*1000*800 Mm
Drop Height: 300~2000 Mm Horsepower: 1/2 HP
Design Criteria: ISO 2248, JIS Z0202-87, GB T4 Transmit Approach: Electric Transmission
Control Box Size: (L*W*H): 350*350*1100 Mm Drop Platform Area: 1400*1200*1940 Mm
High Light:

mechanical tensile testing machine

,

tensile strength testing equipment

Drop Dart Impact Tester,Drop Testing Equipment ,Drop Test Machine, Light Weight Drop Test Machine



Introduction

Drop Test Machine,Drop Testing Equipment Price,Drop Dart Impact Tester is used to measure the dropping impact incidence when the package in using, transportation and decorating. Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this Drop Tester simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be teste.



Specification





Feature
1. The spindle is used by precision grinding shaft lever, high precision, good stability
2. LCD screen displays multi-parameter.
3. Power failure safety design, keeping the original state when the power is failed.
4. Up and down lifting limitation setting
5. Adopt single arm supports test object.
6. Swing arm system is controlled by air pressure.
7. Free adjust pressure and speed up to 2G with object weight.
8. Test elctronic parts, finished products or angle surfae of the package container.
9. Decompression change design, low noise.
10. Best after sales service: One year free parts maintenance.

11. Meet international test standards.
12. Customization is available & welcomed.



Packaging Drop Test Machine 1 / 2 HP Horsepower Electric Transmission 0
