Drop Impact Test Machine , Lab Drop Tester 1500mm Drop Height/Drop Test Machine

China Drop Impact Test Machine , Lab Drop Tester 1500mm Drop Height/Drop Test Machine supplier

Large Image :  Drop Impact Test Machine , Lab Drop Tester 1500mm Drop Height/Drop Test Machine

Product Details:

Place of Origin: China (Mainland)
Brand Name: OTS
Certification: CE ISO
Model Number: XB-OTS-210

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets (Min. Order)
Price: Negotiable
Packaging Details: standard export plywood case
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Power: Electronic Usage: Drop Tester
Max. Load: 60 Kg Drop Height: 2000mm
Drop Method: Face, Edge, Angle Control Method: Control Cabinet

Drop Test For Lighting,Drop Test Machine For Smartphones,Plastic Bumping Force Testing

Drop Impact Test Machine , Lab Drop Tester 1500mm Drop Height/Drop Test Machine

Specifications:

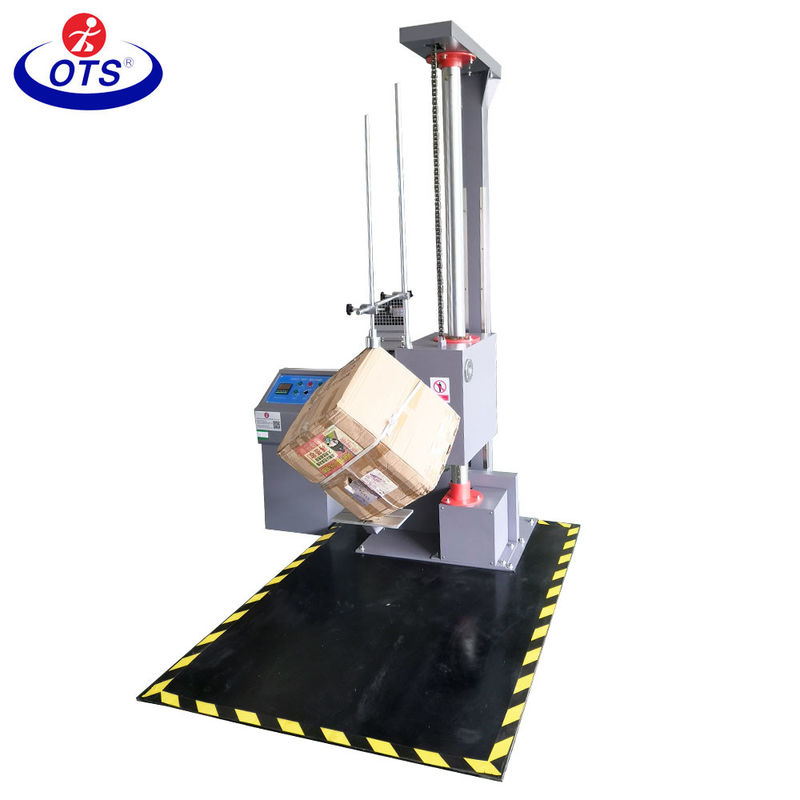

Light Drop Weight Tester can determine the ultimate dimension in drop testing and incline impact testing for product and package performance which uses as reference to improve the packing. Special fixtures are available to allow for corner and edge drops.

Design Standard: GB4757.5-84 JISZ0202-87 ISO2248-1972(E)

Light Drop Weight Tester Characteristics:

1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.

2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.

3. High Accuracy, direct display

4. It is steady when it is dropping and lifting




Technical Parameters
Model AS-DT-120 AS-DT-150 AS-DT-200
Max. Weight of Test Samples (Kg) ≥200 60 60
Height of Drop (mm) 0~1200 300~1500 300~2000
Max. Dimension of Test Sample WxHxD (mm) 1200x1200x1200 1000x800x1000 1000x800x1000
Falling Floor Size WxHxD (mm) 1400x50x2000 1700x50x1200 1700x50x1200
Drop Method Face, edge, angle
Test Bench External Dimension WxHxD (mm) 1400x2000x1800 1700x2700x1200 1700x2700x1200
Weight (Kg) 1500 600 700
Power

AC 380V



Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Our service:
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.



Our advantages:
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products



Our concept:
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.



Drop Impact Test Machine , Lab Drop Tester 1500mm Drop Height/Drop Test Machine
