Adjustable Space ASTM Drop Weight Impact Test Equipment 60kg Max Loading Capacity/ball drop test equipment

China Adjustable Space ASTM Drop Weight Impact Test Equipment 60kg Max Loading Capacity/ball drop test equipment supplier
Adjustable Space ASTM Drop Weight Impact Test Equipment 60kg Max Loading Capacity/ball drop test equipment supplier Adjustable Space ASTM Drop Weight Impact Test Equipment 60kg Max Loading Capacity/ball drop test equipment supplier Adjustable Space ASTM Drop Weight Impact Test Equipment 60kg Max Loading Capacity/ball drop test equipment supplier Adjustable Space ASTM Drop Weight Impact Test Equipment 60kg Max Loading Capacity/ball drop test equipment supplier

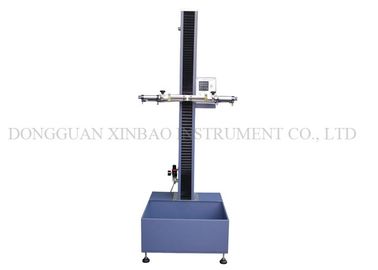

Large Image :  Adjustable Space ASTM Drop Weight Impact Test Equipment 60kg Max Loading Capacity/ball drop test equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE ISO
Model Number: XB-OTS-09B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets (Min. Order)
Price: Negotiable
Packaging Details: The machines will be surrounded by foam and then packed by standard wooden carton. It is very safety!
Delivery Time: Shipped in 20 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Standard: ASTM-5276,GB/T 4857.5 Power Supply: Electronic Power
Raise Range: 200~1500 Mm, 400~1650 Mm Adjustable Space(LxWxH): (220~1080) X 760 X (400~1650)
Max Loading Capacity: 60kg(approx.) Motor: Height Adjustment 1/4HP, Width A
Dimension(WxDxH): 190x134x218cm; Control Unit:35x32x112cm Weight(Approx): 670kg

Used Impact Testing Machine,Drop Impact Test Machine,Impact Tester, impact drop testing machine

Adjustable Space ASTM Drop Weight Impact Test Equipment 60kg Max Loading Capacity/ball drop test equipment

Product Description


It is designed for determining the damage of the packaged contents after being dropped so that the manufacturer can know how to take measures effectively to protect Its products against damage during transportation. During dropping, the carrier will rotate to allow the packed products to fall freely.lt can test the faces, edges and corners of the product, with small vibration, and stable and reliable operation.





Standard:ASTM-5276,GB/T 4857.5



Parameter:



Raise range 200~1500 mm, 400~1650 mm (optional)
Adjustable space(L × W × H) (220 ~1080) × 760 × (200~1500) mm ,
(220~1080) × 760 × (400~1650) mm(optional)
Max loading capacity 60kg(approx.)
Motor Height adjustment 1/4HP
Width adjustment 60W
Dimension(W × D × H) Main Unit:190× 134× 218cm
Control Unit:35× 32× 112cm
Weight(Approx) 670kg
Power AC 220V,50/60HZ,5A(Specified by user)



Feature:


1. The spindle is used by precision grinding shaft lever, high precision, good stability
2. LCD screen displays multi-parameter.
3. Power failure safety design, keeping the original state when the power is failed.
4. Up and down lifting limitation setting
5. Adopt single arm supports test object.
6. Swing arm system is controlled by air pressure.
7. Free adjust pressure and speed up to 2G with object weight.
8. Test elctronic parts, finished products or angle surfae of the package container.
9. Decompression change design, low noise.
10. Best after sales service: One year free parts maintenance.

11. Meet international test standards.
12. Customization is available & welcomed.





Our Services

Installation And Training Service

The technicians are available for oversea training and installation DVD can provided to customer freely if necessary.

Inspection Before Delivery
Before delivery, a detailed checklist of tasks is carefully executed and the results will be delivered to customer. HS can also provide the third party certification if customer request it.

After Service

1. For any parts’ problem, HS will offer parts / accessories without any charge within 18 month.

2. HS technicians can also go to site to repair the machines freely and the customer just need to pay for the air tickets cost.

3. HS will offer lifetime maintenance.
