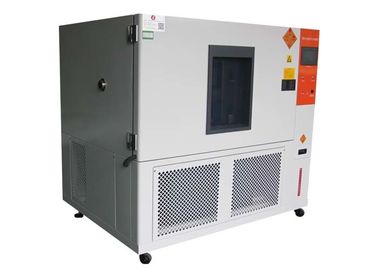

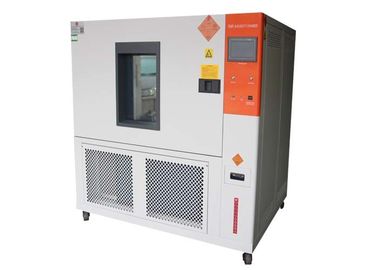

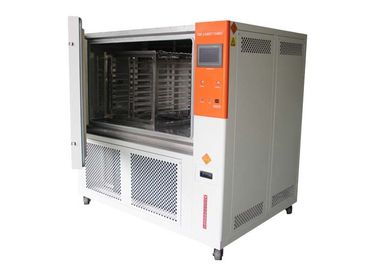

White Lab Test Chamber , Resist Heat And Resist Cold Test Temperature Humidity Cycle Climatic Chamber

Certification
Good quality Environmental Test Chamber for sales
Good quality Environmental Test Chamber for sales
This is my second cooperation with OTS, the machine is very good, and fast service. Look forward our next order.

—— Vinod Kumar Pandey

OTS is a very professional manufacturer for our customized machine. The quality is very surprising under such a friendly price.

—— Kohut Gabor

I visited OTS factory before order. I like their production machines, and experienced technicians. Now we have annual order from them, it is always a happy cooperation with them.

—— Chris

I'm Online Chat Now

White Lab Test Chamber , Resist Heat And Resist Cold Test Temperature Humidity Cycle Climatic Chamber

China White Lab Test Chamber , Resist Heat And Resist Cold Test Temperature Humidity Cycle Climatic Chamber supplier
White Lab Test Chamber , Resist Heat And Resist Cold Test Temperature Humidity Cycle Climatic Chamber supplier White Lab Test Chamber , Resist Heat And Resist Cold Test Temperature Humidity Cycle Climatic Chamber supplier White Lab Test Chamber , Resist Heat And Resist Cold Test Temperature Humidity Cycle Climatic Chamber supplier

Large Image :  White Lab Test Chamber , Resist Heat And Resist Cold Test Temperature Humidity Cycle Climatic Chamber

Product Details:

Place of Origin: China
Brand Name: OTS
Certification: CE Certification
Model Number: XB-OTS-408

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for Resist heat and resist cold test temperature Humidity Cycle Climatic Chamber
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Contact Now
Detailed Product Description
Model Numbe: XB-OTS-408 Product Name: Resist Heat And Resist Cold Test Temperature Humidity Cycle Climatic Chamber
Temperature Control: -70°C ~ +180 °C Humidity Control: 10%~98% RH
Refrigerant: Environmental Friendly R404A/R23 Controller: OTS Designed Controller With LCD
Color: White Usage: Universal Testing Machine,environmental Test Chamber
Power: Electronic Place Of Origin: Original France Tecumseh

Resist heat and resist cold test temperature and Humidity Cycle Chamber



Introduction:



Resist heat and resist cold test temperature and Humidity Cycle Chamber is for testing material heat, cold, dry resistance, humidity resistance.

Manufactured samples, specimens, or components are placed inside the chamber and subjected to one or more of these environmental parameters to determine reliability or measure after-effects such as corrosion. In the case of machinery such as internal combustion engines, byproducts such as emissions are monitored.



White Lab Test Chamber , Resist Heat And Resist Cold Test Temperature Humidity Cycle Climatic Chamber

Customer Support Services



Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair



Specifications :



ModeNumber XB-OTS-80 XB-OTS-150 XB-OTS-225 XB-OTS-408 XB-OTS-800 XB-OTS-1000
Inner size(W*H*D)CM 40*50*40 50*60*50 50*75*60 60*85*80 100*100*800 100*100*100
External size (W*H*D)CM 90*136*94 100*146*104 100*161*117 110*171*137 150*186*137 150*186*157
Temperature range -70°C~+150°C(180°C)(A:-20°C B:-40°C C:-60°C D:-70°C )
Humidity range 20%~98%R.H.(10%-98%R.H/5%~98%R.H)
Temp humidity ±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.
analytic accuracy/uniformity
Temperature humidity ±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.
control accuracy/fluctuation
Heat/cooling time About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )
Inner and outer materials SUS#304 Stainless steel for inner chamber and
Carton Advanced cold plate nano paint for outer.
Insulation materials Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
Cooling system Air cooling/single segment compressor(-20°C) ,air and water double segment compressor (-40°C~-70°C)
Protection devices Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning system
Parts Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze
Controller TEMI1500 TH-900C South Korea
Compressor Original France“Tecumseh”brand
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz





Standard Reference

GB11158 GB10589-89
GB10592-89 GB/T10586-89
GB/T2423.1-2001 GB/T2423.2-2001
GB/T2423.3-93 GB/T2423.4-93
GB/T2423.22-2001 IEC60068-2-1.1990
MIL-STD-810F-507.4 MIL-STD883C 1004.2
JIS C60068-2-3-1987 IEC68-2-03
ASTM D1735 JESD22-A101-B-2004
JESD22-A103-C-2004 JESD22-A119-2004



Features



A. Reliability testing based on current test standards in the temperature range of -70 °C to 180 °C and 10% to 98% R.H.

B. The ideal simulation chamber for all heat and cold testing in the traditional temperature range -70 ºC and 180 ºC.

C. Forced ventilation loops design, balance temperature & humidity control system .

D. We can provide custom-made machine and optional accessories satisfied your special requirements.

E. Improved programming and data collection via computer

F. Energy-saving operation, the XB-OTS-1000 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of OTS environmental test chambers the most energy efficient ever.



RFQ



1. Are you a Manufacturer ? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are manufacturer of Climatic Test Chamber,Mini Temperature Chamber,Temperature Humidity Chamber Price .Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.



If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine



White Lab Test Chamber , Resist Heat And Resist Cold Test Temperature Humidity Cycle Climatic Chamber
