Temperature Humidity Cycling Test Chamber OTS Designed Controller With LCD

China Temperature Humidity Cycling Test Chamber OTS Designed Controller With LCD supplier
Temperature Humidity Cycling Test Chamber OTS Designed Controller With LCD supplier Temperature Humidity Cycling Test Chamber OTS Designed Controller With LCD supplier Temperature Humidity Cycling Test Chamber OTS Designed Controller With LCD supplier

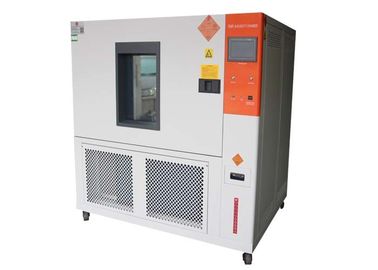

Large Image :  Temperature Humidity Cycling Test Chamber OTS Designed Controller With LCD

Product Details:

Place of Origin: China
Brand Name: OTS
Certification: CE Certification
Model Number: XB-OTS-408

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for Economic environmental constant temperature humidity cycling test chamber
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Contact Now
Detailed Product Description
Model Numbe: XB-OTS-150 Product Name: Economic Environmental Constant Temperature Humidity Cycling Test Chamber
Temperature Control: -70°C ~ +150 °C Humidity Control: 10%~98% RH
Refrigerant: Environmental Friendly R404A/R23 Controller: OTS Designed Controller With LCD
Color: White Usage: Universal Testing Machine,environmental Test Chamber
Power: Electronic Place Of Origin: Original France Tecumseh

Economic environmental constant temperature humidity cycling test chamber



Introduction:



Economic environmental constant temperature humidity cycling test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing,  packaging, etc.

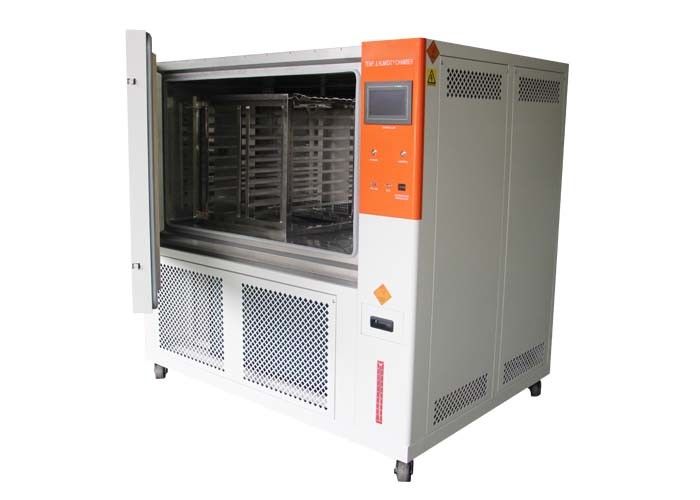

Temperature Humidity Cycling Test Chamber OTS Designed Controller With LCD



The main technical parameters

Model XB-OTS-150
Internal dimension (W*D*H) 500*600*500mm
External dimension (W*D*H) around 1000*1460*1040mm
Temperature range -70~+150℃
Temperature fluctuation ±0.5℃
Temperature uniformity 2℃
Humidity range 20~98%RH (Refer Image below)
Humidity fluctuation ±2.5%RH
Humidity uniformity 3%RH
Cooling speed 1℃/min in average (without loading)
Heating speed 3℃/min in average (without loading)
Internal chamber material SUS#304 stainless steel, mirror finished
External chamber material Stainless steel
Cooling method Air cooling
Controller

LCD touch screen, programmable control temperature and humidity

Can set different parameter for cyclic test

Insulation material 50mm high density rigid Polyurethane foam
Heater Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor France Tecumseh compressor
Lighting Heat resistance
Temperature sensor PT-100 dry and wet bulb sensor
Observation window Tempered glass
Testing hole Diameter 50mm, for cable routing
Sample tray SUS#304 stainless steel, 2pcs
Safety protection device

Protection for leakage

Over-temperature

Compressor overvoltage and overload

Heater short circuit

Water shortage



Temperature Humidity Cycling Test Chamber OTS Designed Controller With LCD

Features



A. Reliability testing based on current test standards in the temperature range of -70 °C to 180 °C and 10% to 98% R.H.

B. The ideal simulation chamber for all heat and cold testing in the traditional temperature range -70 ºC and 180 ºC.

C. Forced ventilation loops design, balance temperature & humidity control system .

D. We can provide custom-made machine and optional accessories satisfied your special requirements.

E. Improved programming and data collection via computer

F. Energy-saving operation, the XB-OTS-1000 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of OTS environmental test chambers the most energy efficient ever.





WE have other related models could be choose too , also accept the customized as per your requirements





ModeNumber XB-OTS-80 XB-OTS-150 XB-OTS-225 XB-OTS-408 XB-OTS-800 XB-OTS-1000
Inner size(W*H*D)CM 40*50*40 50*60*50 50*75*60 60*85*80 100*100*800 100*100*100
External size (W*H*D)CM 90*136*94 100*146*104 100*161*117 110*171*137 150*186*137 150*186*157
Temperature range -70°C~+150°C(180°C)(A:-20°C B:-40°C C:-60°C D:-70°C )
Humidity range 20%~98%R.H.(10%-98%R.H/5%~98%R.H)
Temp humidity ±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.
analytic accuracy/uniformity
Temperature humidity ±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.
control accuracy/fluctuation
Heat/cooling time About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )
Inner and outer materials SUS#304 Stainless steel for inner chamber and
Carton Advanced cold plate nano paint for outer.
Insulation materials Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
Cooling system Air cooling/single segment compressor(-20°C) ,air and water double segment compressor (-40°C~-70°C)
Protection devices Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning system
Parts Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze
Controller TEMI1500 TH-900C South Korea
Compressor Original France“Tecumseh”brand
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz





Standard Reference

GB11158 GB10589-89
GB10592-89 GB/T10586-89
GB/T2423.1-2001 GB/T2423.2-2001
GB/T2423.3-93 GB/T2423.4-93
GB/T2423.22-2001 IEC60068-2-1.1990
MIL-STD-810F-507.4 MIL-STD883C 1004.2
JIS C60068-2-3-1987 IEC68-2-03
ASTM D1735 JESD22-A101-B-2004
JESD22-A103-C-2004 JESD22-A119-2004





FAQ
Why choose us?


1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.


2.Excellent After sale Service:
14 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.


3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.


4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
