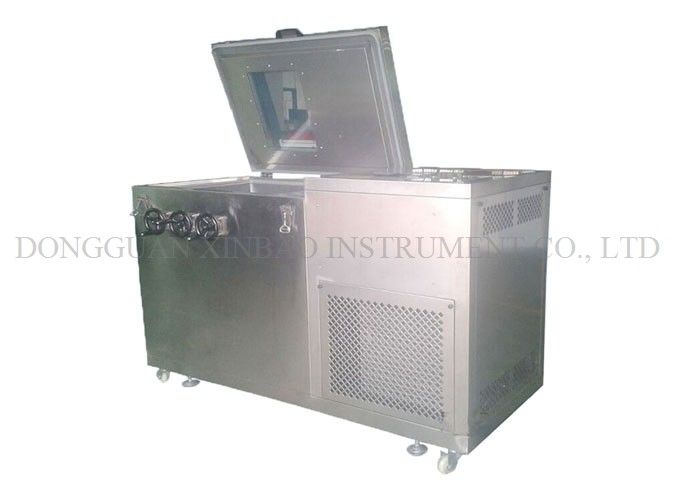

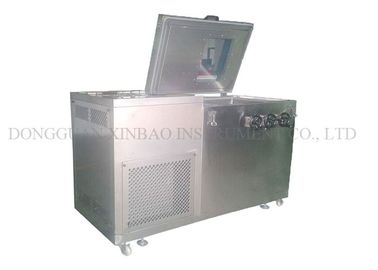

-40℃~+150℃ 220V Cable Wire Low Temperature Impact Bending Tester

-40℃~+150℃ 220V Cable Wire Low Temperature Impact Bending Tester
-40℃~+150℃ 220V Cable Wire Low Temperature Impact Bending Tester -40℃~+150℃ 220V Cable Wire Low Temperature Impact Bending Tester -40℃~+150℃ 220V Cable Wire Low Temperature Impact Bending Tester

Large Image :  -40℃~+150℃ 220V Cable Wire Low Temperature Impact Bending Tester

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: XB
Certification: CE ISO
Model Number: XB-OTS-150L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units (Min. Order)
Price: Negotiable
Packaging Details: Strong standard wood case for Highly Accelerated Life Testing PCT pressure highly accelerated ageing test chamber
Delivery Time: about 15 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 216 Unit/Units per Month
Detailed Product Description
Temperature Uniformity: ≤2.0℃ Temp Deviation: ≤±1℃
Temp Fluctuation: ≤0.5℃ Accurancy: ±0.2℃/ ±2.5%
Temp Range: 0℃/-20℃/-40℃/-70℃~+150℃ External Size: W*H*D(cm):102*145*107
Internal Size: W*H*D(cm):50*60*50 Heating/Cooling Rate: 3℃/min,1℃/minadjustable (Nonli
Usage: Cold Bending Tester For Wire Power: ≤2.0℃
High Light:

battery and cell test equipment

,

impact test apparatus



Cable Wire Low Temperature Impact Bending Tester



Our Company


OTS Instrument Co., Ltd.
was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...

OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing
requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing
process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI,
AATCC, IEC, VDE...



Convenient Operation Cold Bend impact Testing Machine for wire



Introduction:


This tester is specialized in testing the impact and bending of the variable wires under low-temperature condition .If the cross -sectional area of conductor is less than 100 mm2, then specimen must be put into testing chamber for freezing for one hour , after that immediately rolls specimen around the specified rod in a uniform speed .
Otherwise , for the cross - sectional area over 100 mm2 ,roll the specimen before hand and put into chamber for freezing one hour .
Afterwards , immediately roll specimen around the rod in reverse direction .
Finally , take out of specimen for checking whether its surface has crack or fissure or not.

Specification:

Product name Cable Wire Low Temperature Bending Tester
Model XB-OTS-150L
Internal size 50×60×50cm (W×H×D)
External size 102×145×107cm (W×H×D)
Weight 250KG
Temp range 0℃/-20℃/-40℃/-70℃~+150℃
Accuracy

±0.2℃/ ±2.5%

(The difference between setting value and measured value of the controller)

Temp fluctuation

≤0.5℃

(The temperature fluctuation is half of the difference between the highest and lowest temperatures measured at the center.)

Temp deviation

≤±1℃

(The average temperature of the display value of the temperature controller minus the average temperature measured at the center point.)

Temperature uniformity

≤2.0℃

(The arithmetic average of the difference between the highest and lowest temperatures measured in each test)

Heating rate 3℃/min adjustable (Nonlinear, no load)
Cooling rate 1℃/min adjustable (Nonlinear, no load)

Wire wrap and weights



● Specimen diameter at low temperature: Ф2.5~Ф12.5mm.

● Wrapped loops of specimen: 2~10 loops.

● Axle center number: 4 sets(Each set can be equipped with 3 sizes), 4

samples can be tested at the same time.

● Rod diameter (Customization is acceptable):Diameter 12.7mm--4pcs;

Diameter 19.7mm--4pcs; Diameter 6.5mm--4pcs; Total 12pcs.

● Wights (Customization is acceptable): 1.5kg, total 4pcs

Precautions

● Test or storage of flammable, explosive and volatile materials;

● Test or storage of corrosive substances;

● Test or storage of biological specimens;

● Test or storage of strong electromagnetic emission source

sample;

● Test or storage of specimens of highly toxic substances;

● Specimens that may be flammable, explosive, volatile, highly

toxic, corrosive and radioactive in the process of testing or storage.



Model:XB-OTS-150L

1. Internal size W×H×D(cm):50×60×50
2. External size W×H×D(cm):102×145×107
3. Weight: 250KG
4. Temp range: 0℃/-20℃/-40℃/-70℃~+150℃
5. Accurancy: ±0.2℃/ ±2.5%
(The difference between setting value and measured value of the controller)
6. Temp fluctuation: :≤0.5℃
(The temperature fluctuation is half of the difference between the highest and lowest temperatures measured at the center.)
7. Temp deviation: ≤±1℃
(The average temperature of the display value of the temperature controller minus the average temperature measured at the center point.)
8. Temperature uniformity: ≤2.0℃
(The arithmetic average of the difference between the highest and lowest temperatures measured in each test)
9. Heating rate: 3℃/min adjustable (Nonlinear, no load)
10. Cooling rate: 1℃/min adjustable (Nonlinear, no load)
11. Wire wrap and weights



*. Specimen diameter at low temperature: Diameter 2.5~Diameter 12.5mm

*. Wrapped loops of specimen: 2~10 loops

*. Axle center number: 4 sets(Each set can be equipped with 3 sizes), 4 samples can be tested at the same time.

*. Rod diameter (Customization is acceptable):Diameter 12.7mm--4pcs; Diameter 19.7mm--4pcs; Diameter 6.5mm--4pcs; Total 12pcs.

*. Wights (Customization is acceptable): 1.5kg, total 4pcs



Precautions



*.Test or storage of flammable, explosive and volatile materials;

*. Test or storage of corrosive substances;

*. Test or storage of biological specimens;

*. Test or storage of strong electromagnetic emission source sample;

*.Test or storage of specimens of highly toxic substances;
*.Specimens that may be flammable, explosive, volatile, highly toxic, corrosive and radioactive in the process of testing or storage.


Advantage


Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair



Descroption:

  • Specimen diameter at low temperature: Ф2.5~Ф12.5mm
  • Wrapped loops of specimen: 2~10 loops
  • Axle center number: 4 sets(Each set can be equipped with 3 sizes), 4 samples can be tested at the same time.
  • Rod diameter (Customization is acceptable):Diameter 12.7mm--4pcs; Diameter 19.7mm--4pcs; Diameter 6.5mm--4pcs; Total 12pcs.
  • Wights (Customization is acceptable): 1.5kg, total 4pcs



Precautions:

  • Test or storage of flammable, explosive and volatile materials;
  • Test or storage of corrosive substances;
  • Test or storage of biological specimens;
  • Test or storage of strong electromagnetic emission source sample;
  • Test or storage of specimens of highly toxic substances;

Specimens that may be flammable, explosive, volatile, highly toxic, corrosive and radioactive in the process of testing or storage.
