|Product Name:||Battery Drop Free Testing Equipment||Brand:||OTS|
|Power Supply:||1∮,AC220V,ф5A||Delivery Time:||20 Days|
|Payment Term:||50%TT In Advance,50% Before Shipment||Testing Method:||Face, Edge, Corner Dropping|
battery and cell test equipment,
impact test apparatus

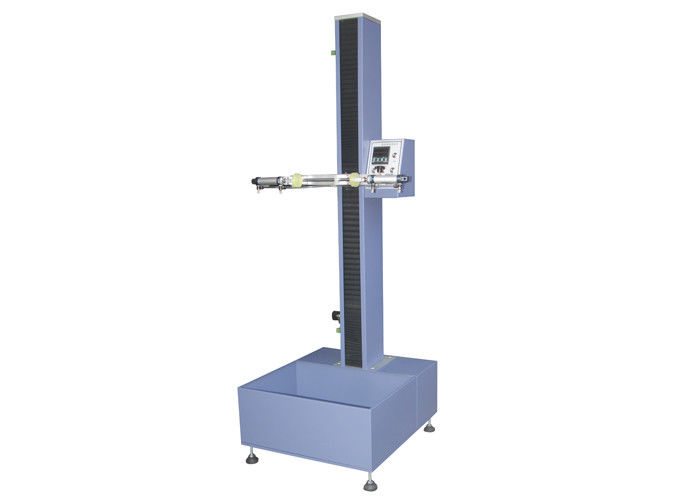

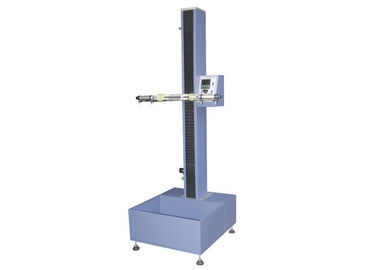

Electromagnetic single column battery drop free testing equipment with ISO standard
This machine available for package face, corner, edge free drop testing.
With height digital display instrument and tracing height with encoder, so can measure the precision drop height. Adopt pneumatic structure, fix the specimen with special fixture (range adjustable), push the drop button, pneumatic cylinder open, specimen free dropping . The drop height controllable, and with height steel ruler which makes drop height available. Various kinds drop floor optional. Meets different testing standards.
|Drop Height||300~1500mm(Controllable, steel ruler ,min.indication value :1mm)|
|Testing Method||Face, edge, corner dropping|
|Max Test Loading||2kg±100g|
|Drop floor material||A3steel plate (Acrylic plate,marble plate, wooden plate optional )|
|Drop floor dimension||500 x 600 x 200mm(solid plate)|
|Machine dimension||W700 X D900 X H1650mm|
|Drop method||Pneumatic dropping|
|Hight display||Altimeter height control,LED number,Accurate to 1 mm|
1. Drop tester for the face of the package, Angle and edge for free drop test, equipped with digital display and the highly display decoder to track height, drop height, which can accurately give products with preset drop height error less than 2%, or 10 mm.
2. The machine adopts single arm double column structure with electric reset, electric control drop and electric lifting device, easy to use;
3. The unique hydraulic buffer device greatly increases the service life of the machine, the stability and security.
