Payment & Shipping Terms:
|Inner Size (D*W*H):||600*600*700 Mm||Temp Range:||-70°C~+150°C|
|Cooling Rate:||0.7c~1.0c/Min (Average)||Internal Chamber:||Stainless Steel(SUS304)|
|Temp Fluctuation:||±0.5%||Pressure Range:||101kpa ~1kpa|
|Controller:||Touch Screen Controller||Power Supply:||AC380V/50Hz, 3phase 4 Wires+ Ground Wire|
altitude simulation chamber,
high altitude chamber

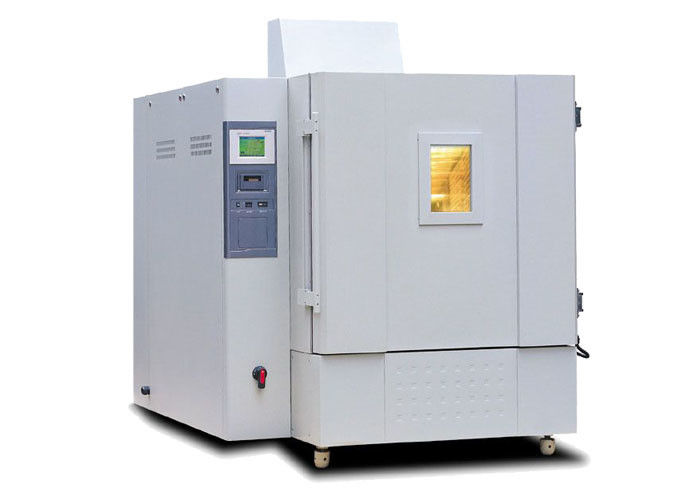

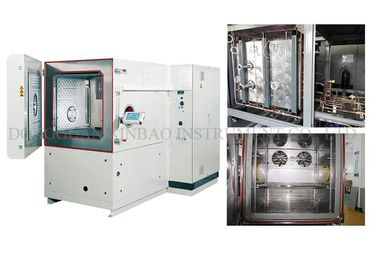

High Accurate Environmental Test Chamber Temperature Altitude Chamber is used in different industries like the instruments and meters, electrical products, materials, spare parts, equipment, etc, but mainly in aviation, aerospace, information, electronics and other industries. This machine can be operated at a low pressure, high temperature, low temperature, under the effect of single factor or multiple conditions at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen.
|Inner Size (D*W*H)mm||600*600*700||800*700*900||1000*1000*1000||1200*1400*1200|
|Temp deviation||≥100℃, ±3.0℃(at 101kPa, ATM no load)|
|<100℃, ±2.0℃(at 101kPa, ATM no load)|
|Cooling rate||0.7℃~1.0℃/min (Average)|
|Pressure range||101kPa ~1kPa|
|Pressure accuracy||±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa)|
|Depressurization rate||101kPa ~1kPa≤30mins (Room temp)|
|Pressure recovery rate||10kPa/Min(adjustable)|
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Two sample holders; an observation window; φ25 or φ50 cable hole.
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Tecumseh, Bock Compressor;
High quality electronic components (DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
1. Power owed to reverse protection
2. No fuse switch
3. Dry compustion prevention switch
4. The water protection switch
5. Over-temperature protection
6. Motor overload protection
7. The high-pressure compressor protection
8. The overheating protection of compressor
9. The over-current protection of compressor
10. The over-current protection of vacuum pump
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4. Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7. Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø Oversea offices
Ø Own import and export business license
Customer Support Services
Ø Training (Training customer employees)
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
