|Delay Function:||0 To 60 Minutes||Diameter Of Fluid Cylinder:||70MM|
|Compression Space:||300*400*300mm||Pressure Range:||13kN(1kN~20kN Adjustable)|
battery and cell test equipment,
impact test apparatus

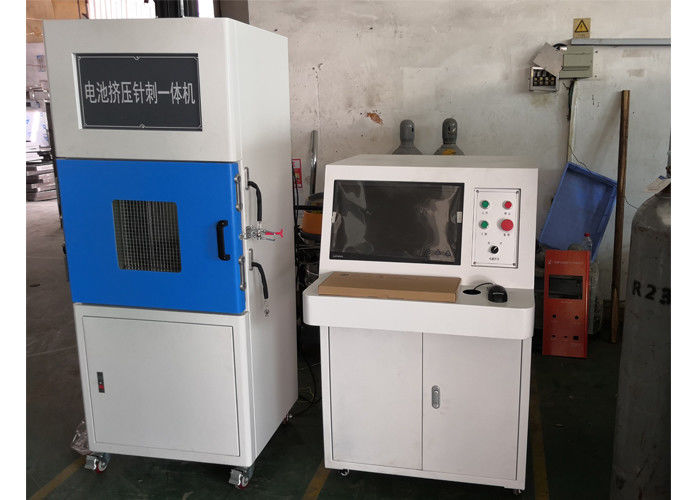

This equipment mainly used for safety inspection for batteries like vehicles lithium batteries, power battery, battery-cell, electric vehicle battery etc, which integrated with pressure system, explosion-proof system, data acquisition system, computer control system together, adopt independent machine and control system, realized remote control and testing. And have multi safety protection devices, available to comply with various test standard.
|Pressure range||13kN(1kN~20kN adjustable)|
|The pressure accuracy||±1.0kg|
|Delay function||0 to 60 minutes|
|Diameter of fluid cylinder||70MM|

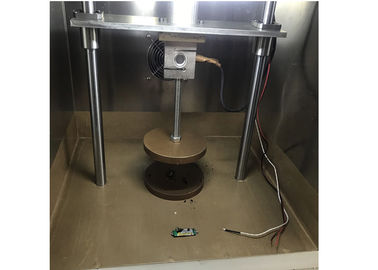

|Power transmission mode||1. The battery is clamped two flat, plate extrusion pressure in the hydraulic pressure transmission;
2. After the battery is firmly clamped, the pressure began to squeeze until the number was raised to the hydraulic cylinder 2500 (17.2Mpa), the pressure between the two plates is 3000pound (13KN), the sudden release of pressure;
3. Battery diameter parallel to the plate, the square-shaped battery needs to be rotated 90 degrees and then squeeze.
1.The wire enclosed with metal fireproof cover, which is available to prevent the flame during testing process.

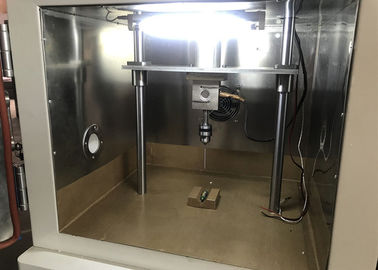

2.Lighting system is designed to observe the internal testing process;

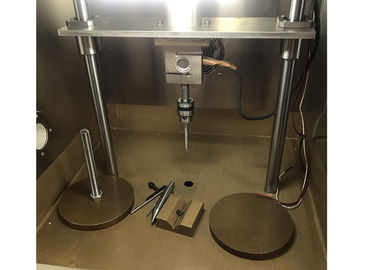

3. Nail Penetration/Crush Force controllable within range from 250N to 13KN ,meet different standard
4.Wire hole provides a possibility to test internal temperature or air pressure while vent hole with air blower can discharge the exhaust air.
5.Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety.
