Product Details:
Payment & Shipping Terms:
|
Product Name: | 225L Rapid-rate Thermal Cycle Chamber / Test Equipment For Car Parts Tesing | Power: | 220V / 380V, 50Hz / 60Hz |
---|---|---|---|
Body Material: | SUS#304 Stainless Steel Plate | Controller: | Programmable LCD Touch Screen Casters |
Temperature Range: | -40℃ To 150℃ | Inner Chamber Size: | 60*75*50cm |
Outer Chamber Size: | 109*168*113cm | Delivery Time: | 20 Working Days |
Highlight: | benchtop thermal chamber,thermal cycling chamber |

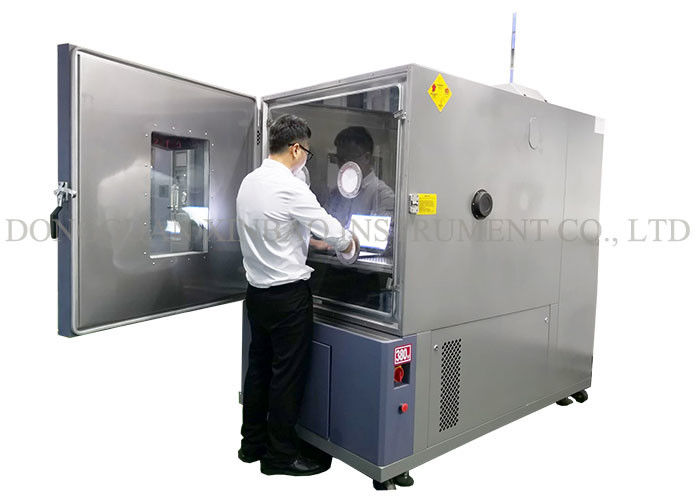

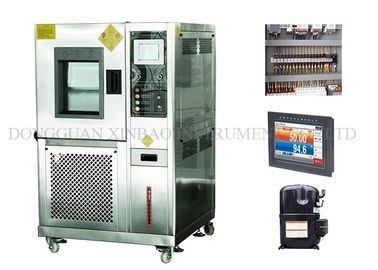

Climatic Chamber Car Parts Tesing Thermal Cycle Test Chamber LCD Touch Screen Controller
Parameters:
Product name | 225L Rapid-rate thermal cycle chamber / test equipment for car parts tesing | Model | XB-OTS-225 | ||
Power | 1∮ AC220V±10% 50Hz | Weight | 350kg | ||
Interior size (W*H*D) |
60(W)*75(H)×50(D)cm |
Exterior size (W*H*D) |
109(W)×168(H)×113 (D)cm | ||
Customized size | acceptable | Cooling type | Air cold | ||
Temperature range | -40℃ ~180℃ | Humidity range | Without | ||
Temp control fluctuation | ≤±0.5℃ | Indication resolution | 0.01℃ | ||
Temp. Uniformity | ≤±2℃ (Put 9 sensor into inner chamber with 9 different location to get uniformity ) | ||||
Heat up&Cool down time | ≤5℃/min for heating; ≤ 1.2℃/min for cooling; | ||||
Chamber materials |
SUS#304 stainless steel for Inner chamber with thickness 1.5mm |
||||
Insulation materials |
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm | ||||
Door |
Hinged door, single door open in the central cabinet ( the front of the chamber)Heat distribution on the door (automatic adjustment) anti-frost, anti-condensation insulating glass observation window |
||||
Features | 1.Has the USB download function, with RS232 interface, the curve of the software, do not need recorder 2.With vacuum glass observation window, direct observation of the function more effectively 3.The refrigerant servo control valve flow calculation. Save electricity 30%, dormancy in flow time, energy savingmore than 50% 4.Preventing electromagnetic interference by SGS certification controller;At least 32 digital soft path matching with The Times development and software upgrade function 5.Defrost cycle (800 cycle defrost time, defrosting guarantee within 2 hours each time, integration test reach 25% of the energy saving province electricity) |
||||
Package and shipment |
(1). Strong standard wood case, inner plastic films wrapped. |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Standards:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C EIA - 364-59
