|Product Name:||XB-OTS-120W Touch Control Panels Palt Spray Combined Test Machine With LCD Display||Internal Size:||120*100*50(cm） (L*W*H)|
|External Size:||190*165*140(cm） (L*W*H)||Weight:||500KG|
|Temp Range:||25℃～80℃||Humidity Range:||20%~98%RH|
|Heating Rate:||10℃→+80℃≤35 Min||Brine Temperature:||35℃+-1℃; 50℃+-1℃|

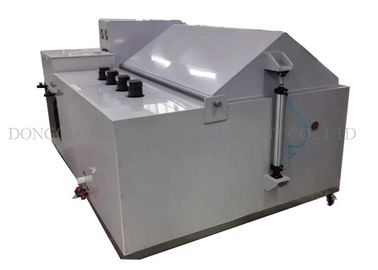

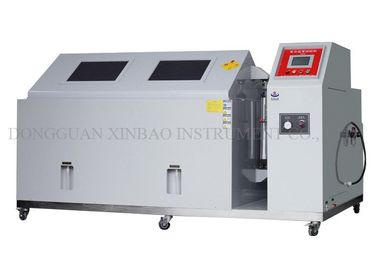

XB-OTS-120W Touch Control Panels Salt Spray Combined Test Machine With LCD Display
Composite Sal spray chamber is applicable for various kinds material’s surface treatment with temperature humidity and salt water spray, such as after coating, electroplate, inorganic and organic membrane dermal, negative pole with antirust oil treatment etc anti-corrosive treatment to test the corrosion-resistance of the product.Can also be used to external lighting and signal device and vehicle lamps shell protection. Walk in type salt spray test chamber is available for us.
|Interior Test Chamber
|Exterior Test Chamber Dimension(cm)(L×W×H)||141*145*140||190*165*140||200*190*140||240*200*140|
|Capacity of the chamber(L)||270L||480L||800L||1000L|
|Temperature&humidity of the operating environment||+5°C~ +35°C / <85%RH|
|Air pressure||86~ 106Kpa|
|Lab. temperature||NSS ACSS 35°C±1°C|
|Pressure barrel temperature||NSS ACSS 47°C±1°C|
|Test room temperature range: +0℃～+85℃||Relative humidity: 20%～98%RH(±3%)|
|Saturated barrel temperature: 47℃～70℃||Temperature/humidity uniformity: ≤±2℃ ≤±3%|
|Temperature resolution: 0.01 ℃||Humidity Resolution: 0.1% RH|
|Temperature fluctuation: ± 0.5 ℃||Humidity fluctuation: ± 2% RH|
Car Spare Parts
Global safety design, use our chambers safely and with peace of mind for many years to come.
We deliver chambers that conform to international safety standards.
Our chambers conform to ISO risk assessment as well as global safety design electrical safety standards such as CE marking and EMC directive.
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for XB-OTS-120W Touch control panels palt spray combined test machine with LCD display.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
Dongguan Xinbao Instrument Co., Ltd, with owner brand of OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978.
OTS has two main production bases over 3 0, 0 0 0m² each in Taiwan and Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines, so customers can check the function and quality immediately. What’s more, OTS has many finished equipment in stock to satisfy customers need in time. In the meanwhile, every machine must be examined before shipment and with lifetime maintenance service.
With the exquisite manufacturing process, an innovative development and research team, a professional sales team and excellent after-sale service, OTS is ready to take part into international market and set an example in this field.
