| Product Name: | 800L Single Stage Refrigeration Heat And Cold Resistance High-low Temperature Cycle Test Chamber | Temperature Range: | -25℃ To 150℃ |
|---|---|---|---|
| Inner Chamber Size: | 100*100*80cm | Outer Chamber Size: | 150*191*144cm |
| Usage: | Climatic Simulation Testing Equipment | Inner Material: | 304 Stainless Steel |
| Controller: | PLC | Package: | Exportable Strong Wooden Case |
| High Light: | thermal cycling test equipment,benchtop thermal chamber |
||

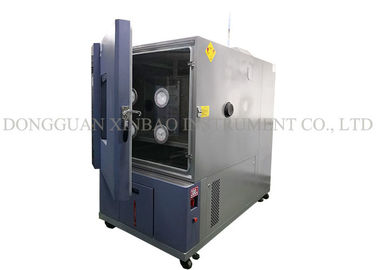

800L Volume Heat and Cold Thermal Cycling Test Equipment Single Stage Refrigeration
Parameters:
| Model | XB-OTS-80 | XB-OTS-150 | XB-OTS-225 | XB-OTS-408 | XB-OTS-800 | XB-OTS-1000 |
| Inner Chamber Size W*H*D(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 80*85*60 | 100*100*80 | 100*100*100 |
| External Chamber Size W*H*D(cm) | 90*142*100 | 100*152*113 | 110*167*113 | 130*177*123 | 150*192*144 | 150*192*163 |
| Inner Chamber Volume(L) | 80 | 150 | 225 | 408 | 800 | 1000 |
| Temperature Range | -70°C~+150°C(180°C (A:-20℃ B:-40℃ C:-60°℃ D:-70℃) (Optional) |
|||||
| Humidity Range | Without | |||||
|
Temp. Uniformity |
≤±2℃ (Put 9 sensor into inner chamber with 9 different location to get uniformity ) |
|||||
|
Temp control fluctuation |
≤±0.5℃ |
|||||
| Applications |
For all types of electronic products quality inspection , electric appliance, and communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries products. |
|||||
| Package and shipment |
(1). Strong standard wood case, inner plastic films wrapped. (2). Usually we delivery the equipment by air,by sea or by express. |
|||||
| Warranty |
A year's quality guarantee period starting from the date of acceptance of the equipment, in guarantee period, completely free maintenance (except natural disaster, abnormal power, people improper use and maintain causing the damage), in the condition of the buyer abiding by the rules of custody, use and installation, because of the test chamber manufacturing quality problem can't work normally, after the supplier be notified, in accordance with the service commitment of time will help the buyer solve the problem by email, if the buyer need that supplier send maintenance personnel to solve it,the buyer only need pay travel charge.
Equipment problems after warranty period, the supplier promise to give solution on time, discretion charge maintenance costs and the cost of raw materials. |
|||||
| Delivery Time | 20 days after getting the payment | |||||
GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle
IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle
EIA - 364-31C temp resistance GB/T2423.3 constant heat test method
FAQ:
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
Our Company:
OTS was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
