Product Details:
Payment & Shipping Terms:
|
| Product Name: | XB-OTS-60 Automatic Test Mode Salt Spray Testing Equipment For Organic Coatings Testing | Inside Temperature: | Brine Test Method(NSS ACSS)35°C±1°C/Corrosion Resistance Test Method (CASS)50°C±1°C |
|---|---|---|---|
| Volume Of Pressure Bucket: | 25L | Spray Method: | Continuous / Periodic Spraying |
| Warranty: | 1 Year | Inside Dimension: | 65*45*40cm |
| Body Material: | SUS#304 Stainless Steel Plate | Relative Humidity: | 85% |
| High Light: | salt spray test equipment,salt spray cabinet |
||
Automatic Test Mode Salt Spray Chamber 85% Relative Humidity For Organic Coatings Testing
Specification:
| Model | XB-OTS-60 | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x120x140 | 270x150x150 |
| Inside temp | Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method. | ||||
| (CASS)50°C±1°C | |||||
| Brine temp | 35°C±1°C 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 480L | 800L | 1440L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
| Compressed air pressure | 1.00±0.01kgf/cm2 | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
| Test room relative humidity | 85%RH or more | ||||
| PH | 6.5~7.2 or 3.0~3.2 | ||||
| Spray method | Programmable spray (including the continuous spray interrupted spray) | ||||
| Features |
1. Temperature of machines are controlled by PID which is highly precision and stable, so it ensures the fluctuation of humidity and temperature, as well as test operation. 2. The temperature control is adopted by P.I.D＋S.S.R so that to improve the stability and service life of the screen and accessories. The touch screen is able to display data and settings at the same time. 3. The automotive water tap is with a filter to prevent blockage of pipes and extend the machine’s service life. 4. In the test chamber , there is a automotive overflow protection device instead of manual work, which improves production efficiency. 5. The heat system is equipped with titanium alloy device. It is corrosion- resistance and rustless, and it also has a repair hole for convenience. 6. The oil water separator is from a famous Taiwan brand ---SNS and with 2 cups. So it can improve the accuracy of tests. 7. The pressure bucket, also called saturated air barrel, is made with SUS304 stainless board. It is to compress the air into humidity and oil filter as a core part of this machine. |
||||
|
Corresponding Standard |
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C EIA - 364-59 ASTM B117 |
||||
| Warranty |
12+2month(in view of transportation ,Customs be 2month),maintenance for lifelong |
||||

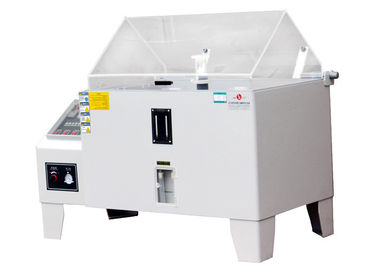

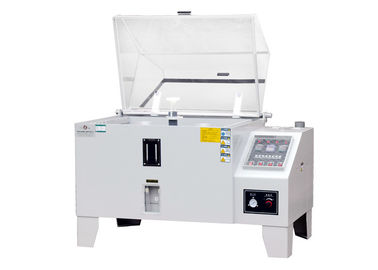

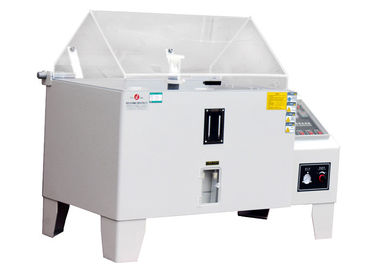

Product Picture:
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for XB-OTS-60 Automatic test mode salt spray testing equipment for organic coatings testing.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
Company Introduction:
Dongguan Xinbao Instrument Co., Ltd, with owner brand of OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978.
OTS has two main production bases over 3 0, 0 0 0m² each in Taiwan and Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines, so customers can check the function and quality immediately. What’s more, OTS has many finished equipment in stock to satisfy customers need in time. In the meanwhile, every machine must be examined before shipment and with lifetime maintenance service.
With the exquisite manufacturing process, an innovative development and research team, a professional sales team and excellent after-sale service, OTS is ready to take part into international market and set an example in this field.
OTS Lab:
