Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electronic Precision Salt Spray Corrosion Testing Machine For Electroplated Chromium And Nickel Test | Temp Range: | 25℃～80℃ |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Heating Rate: | 10℃→+80℃≤35 Min |
| Brine Temperature: | 35℃+-1℃; 50℃+-1℃ | Power Supply: | AC220V 1Phase 15A |
| External Size: | 200x190x140cm | Internal Size: | 160x100x50cm |
| High Light: | salt spray test equipment,salt spray cabinet |
||
Automatic Test Mode Salt Spray Chamber 85% Relative Humidity For Organic Coatings Testing
Specification:
| Model | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 | |
|---|---|---|---|---|---|
| Interior Test Chamber Dimension(cm)(L×W×H) |
90×50×60 | 120×80×50 | 160×100×50 | 200×100×50 | |
| Exterior Test Chamber Dimension(cm)(L×W×H) | 141*145*140 | 190*165*140 | 200*190*140 | 240*200*140 | |
| Capacity of the chamber(L) | 270L | 480L | 800L | 1000L | |
| Temperature&humidity of the operating environment | +5°C~ +35°C / <85%RH | ||||
| Air pressure | 86~ 106Kpa | ||||
| Lab. temperature | NSS ACSS 35°C±1°C | ||||
| CASS 50°C±1°C | |||||
| Pressure barrel temperature | NSS ACSS 47°C±1°C | ||||
| CASS 63°C±1°C | |||||
| Temperature&humidity Control Accuracy |
Test room temperature range: +0℃～+85℃ | Relative humidity: 20%～98%RH(±3%) | |||
| Saturated barrel temperature: 47℃～70℃ | Temperature/humidity uniformity: ≤±2℃ ≤±3% | ||||
| Temperature resolution: 0.01 ℃ | Humidity Resolution: 0.1% RH | ||||
| Temperature fluctuation: ± 0.5 ℃ | Humidity fluctuation: ± 2% RH | ||||
| Cooling system |
A. Air-cooled scaly condenser B. Cooling by imported compressor. |
||||
Features:
1.Automatic / manual water system has automatically add the water level of the water level is low, the test is not interrupted. Water level is insufficient warning to ensure that the use of safety.
2.Precision glass nozzle (PYREX) made of special glass, mist spread evenly and naturally fall on the specimen, and 4000 hours of continuous use, and to ensure that no crystalline salt obstruction.
3.Inlet temperature controller using a digital display, PID control, error of ± 0.1 ° C.
4.Laboratory using direct steam heating, heating up fast, and even reduce the standby time, heating tubes with high corrosion-resistant titanium tubing.
5.Laboratory basket rack using plane indexing rack, can arbitrarily adjust the angle, four off the fog, and the fog direction completely consistent.

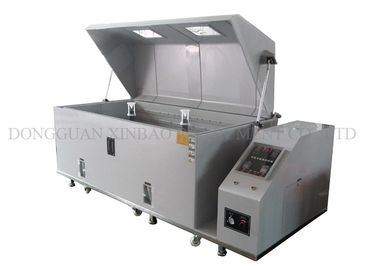

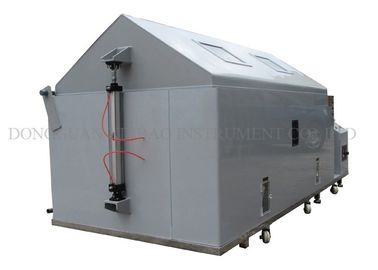

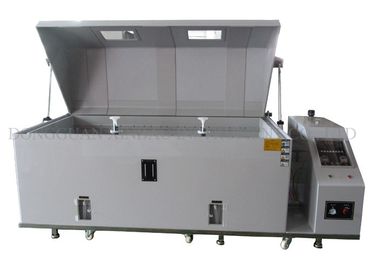

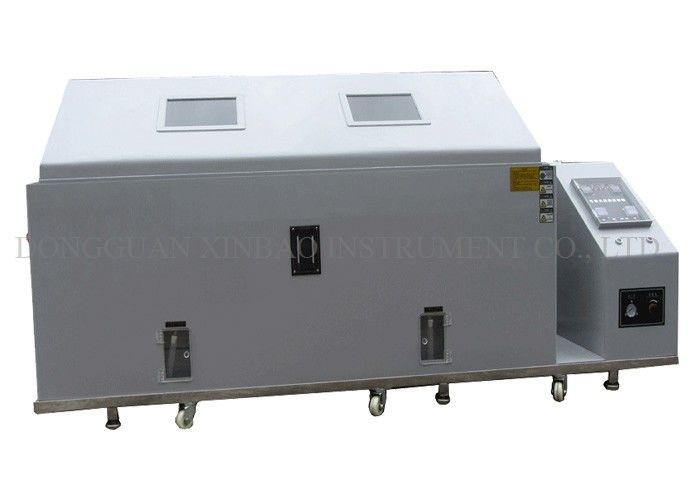

Detailed Picture:
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for Electronic Precision Salt Spray Corrosion Testing Machine for electroplated chromium and nickel test.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
About OTS:
Dongguan Xinbao Instrument Co., Ltd, with owner brand of OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards:ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, Aviation, etc.
