Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-200 | Product Name: | Large Size NSS AASS CASS Salt Spray Combined Temperature Humidity Test Chamber |
|---|---|---|---|
| Laboratory Temperature: | NSS.ACSS 35°C ±1°C/ CASS 50°C | Test Room Temperature: | +0℃～+85℃ |
| PH: | 6.5~7.2 For Salt Spray Method (NSS ACSS)and 3.0~3.2 For Corrosion-resistant Testing Method(CASS) | Controller: | OTS Designed Controller With LCD |
| Relative Humidity: | 20%～98%RH(±3%) | Material: | PVC Material |
| Design Standards: | IEC68-2-11,JIS,H8502,ASTM B-117-97,ISO9227,CNS3627,3885,4159,7669,8886,JIS D-0201 ,ASTM G85 | ||
| High Light: | salt spray corrosion test chamber,salt spray cabinet |
||

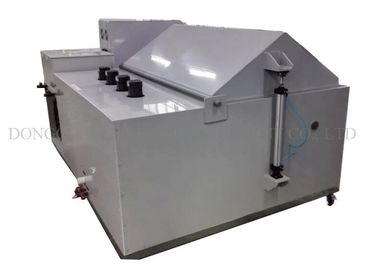

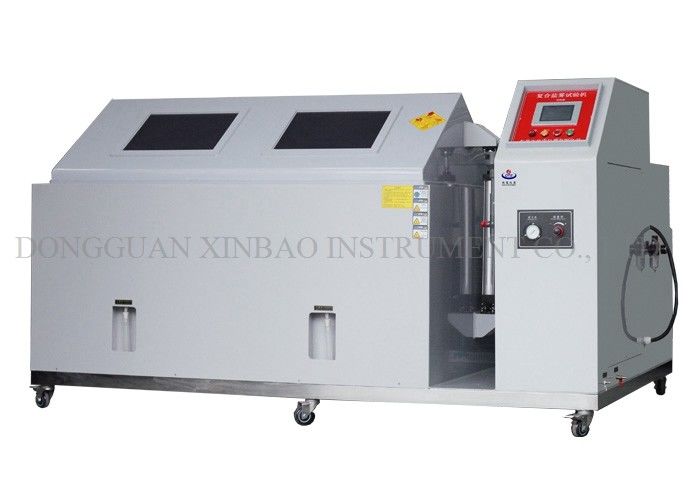

Large size NSS AASS CASS salt spray combined temperature humidity test chamber
Introduction
Large size NSS AASS CASS salt spray combined temperature humidity test chamber is applicable for various kinds material’s surface treatment with temperature humidity and salt water spray, such as after coating, electroplate, inorganic and organic membrane dermal, negative pole with antirust oil treatment etc anti-corrosive treatment to test the corrosion-resistance of the product.Can also be used to external lighting and signal device and vehicle lamps shell protection. Walk in type salt spray test chamber is available for us.
Specification
| Model | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 | |
|---|---|---|---|---|---|
| Interior Test Chamber Dimension(cm)(L×W×H) |
90×50×60 | 120×80×50 | 160×100×50 | 200×100×50 | |
| Exterior Test Chamber Dimension(cm)(L×W×H) | 141*145*140 | 190*165*140 | 200*190*140 | 240*200*140 | |
| Capacity of the chamber(L) | 270L | 480L | 800L | 1000L | |
| Temperature&humidity of the operating environment | +5°C~ +35°C / <85%RH | ||||
| Air pressure | 86~ 106Kpa | ||||
| Lab. temperature | NSS ACSS 35°C±1°C | ||||
| CASS 50°C±1°C | |||||
| Pressure barrel temperature | NSS ACSS 47°C±1°C | ||||
| CASS 63°C±1°C | |||||
| Temperature&humidity Control Accuracy |
Test room temperature range: +0℃～+85℃ | Relative humidity: 20%～98%RH(±3%) | |||
| Saturated barrel temperature: 47℃～70℃ | Temperature/humidity uniformity: ≤±2℃ ≤±3% | ||||
| Temperature resolution: 0.01 ℃ | Humidity Resolution: 0.1% RH | ||||
| Temperature fluctuation: ± 0.5 ℃ | Humidity fluctuation: ± 2% RH | ||||
| Cooling system |
A. Air-cooled scaly condenser B. Cooling by imported compressor. |
||||
Design Standard:
Ⅰ Humidity and salt spray test: NSS,ACSS
1) Temperature of test box: 35℃±1℃
2) Temperature of pressure bucket: 47℃±1℃
Ⅱ Corrosion resistance test: CASS
1) Temperature of test box: 50℃±1℃
2) Temperature of pressure bucket: 63℃±1℃
Supply system: the pressure is 1kg/cm²
Spray measurement 1-2mI(mI/80cm²/h)(average in 16 hours)
Spray way: Continuously.
Features:
1.Automatic / manual water system has automatically add the water level of the water level is low, the test is not interrupted. Water level is insufficient warning to ensure that the use of safety.
2.Precision glass nozzle (PYREX) made of special glass, mist spread evenly and naturally fall on the specimen, and 4000 hours of continuous use, and to ensure that no crystalline salt obstruction.
3.Inlet temperature controller using a digital display, PID control, error of ± 0.1 ° C.
4.Laboratory using direct steam heating, heating up fast, and even reduce the standby time, heating tubes with high corrosion-resistant titanium tubing.
5.Laboratory basket rack using plane indexing rack, can arbitrarily adjust the angle, four off the fog, and the fog direction completely consistent.
Please feel FREE to contact us if you have any needs.
Custom-made ASTM B117 NSS AASS CASS Salt fog Cabinet , salt spray test chamber
