Product Details:
Payment & Shipping Terms:
|
| Product Name: | ASTM Standards Easy Operation Neutral / Acid / Copper-acetic Salt Spray Combined Test Machine | Internal Size: | 90*60*50(cm） (L*W*H) |
|---|---|---|---|
| External Size: | 141*88*158(cm） (L*W*H) | Temp Range: | 25℃～80℃ |
| Humidity Range: | 20%~98%RH | Heating Rate: | 10℃→+80℃≤35 Min |
| Brine Temperature: | 35℃+-1℃; 50℃+-1℃ | Power Supply: | AC220V 1Phase 15A |
| High Light: | salt spray test equipment,salt spray cabinet |
||
ASTM Standard Salt Spray Cyclic Corrosion Test Chamber Humidity Range 20% - 98% RH
Usages:
Composite Sal spray chamber is applicable for various kinds material’s surface treatment with temperature humidity and salt water spray, such as after coating, electroplate, inorganic and organic membrane dermal, negative pole with antirust oil treatment etc anti-corrosive treatment to test the corrosion-resistance of the product.Can also be used to external lighting and signal device and vehicle lamps shell protection. Walk in type salt spray test chamber is available for us.
Specification:
| Model | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 | |
|---|---|---|---|---|---|
| Interior Test Chamber Dimension(cm)(L×W×H) |
90×50×60 | 120×80×50 | 160×100×50 | 200×100×50 | |
| Exterior Test Chamber Dimension(cm)(L×W×H) | 141*145*140 | 190*165*140 | 200*190*140 | 240*200*140 | |
| Capacity of the chamber(L) | 270L | 480L | 800L | 1000L | |
| Temperature&humidity of the operating environment | +5°C~ +35°C / <85%RH | ||||
| Air pressure | 86~ 106Kpa | ||||
| Lab. temperature | NSS ACSS 35°C±1°C | ||||
| CASS 50°C±1°C | |||||
| Pressure barrel temperature | NSS ACSS 47°C±1°C | ||||
| CASS 63°C±1°C | |||||
| Temperature&humidity Control Accuracy |
Test room temperature range: +0℃～+85℃ | Relative humidity: 20%～98%RH(±3%) | |||
| Saturated barrel temperature: 47℃～70℃ | Temperature/humidity uniformity: ≤±2℃ ≤±3% | ||||
| Temperature resolution: 0.01 ℃ | Humidity Resolution: 0.1% RH | ||||
| Temperature fluctuation: ± 0.5 ℃ | Humidity fluctuation: ± 2% RH | ||||
Features:
1.Automatic / manual water system has automatically add the water level of the water level is low, the test is not interrupted. Water level is insufficient warning to ensure that the use of safety.
2.Precision glass nozzle (PYREX) made of special glass, mist spread evenly and naturally fall on the specimen, and 4000 hours of continuous use, and to ensure that no crystalline salt obstruction.
3.Inlet temperature controller using a digital display, PID control, error of ± 0.1 ° C.
4.Laboratory using direct steam heating, heating up fast, and even reduce the standby time, heating tubes with high corrosion-resistant titanium tubing.
5.Laboratory basket rack using plane indexing rack, can arbitrarily adjust the angle, four off the fog, and the fog direction completely consistent.

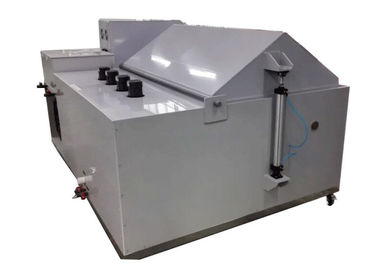

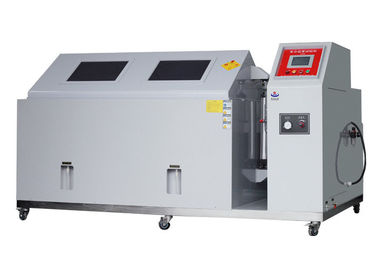

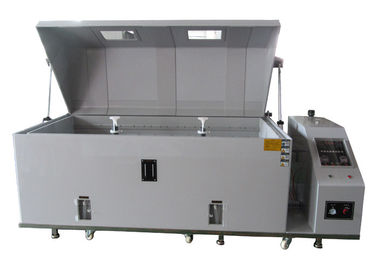

Detailed Picture:
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for ASTM Standards Easy Operation neutral / acid / copper-acetic salt spray combined test machine .
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
Welcome to contact with us for more information, thank you!
