Protective System Cyclic Corrosion Chamber , Environmental Test Chamber Continuous Salt Spray Test for Zinc Plating

Protective System Cyclic Corrosion Chamber , Environmental Test Chamber Continuous Salt Spray Test for Zinc Plating
Protective System Cyclic Corrosion Chamber , Environmental Test Chamber Continuous Salt Spray Test for Zinc Plating Protective System Cyclic Corrosion Chamber , Environmental Test Chamber Continuous Salt Spray Test for Zinc Plating

Large Image :  Protective System Cyclic Corrosion Chamber , Environmental Test Chamber Continuous Salt Spray Test for Zinc Plating

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE; ISO
Model Number: XB-OTS-200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped
Delivery Time: 20 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 350 sets per month
Detailed Product Description
Product Name: High Accuracy Big Size Salt Mist Cyclic Corrosion Testing Equipment With Protective System Inside Dimension: 200*100*50cm(L*W*H)
Inside Temperature: Brine Test Method(NSS ACSS)35°C±1°C/Corrosion Resistance Test Method (CASS)50°C±1°C Spray Method: Continuous Spraying
Volume Of Inner Chamber: 1000L Volume Of Pressure Bucket: 40L
Spray Way: Continuously Power Supply: AC220V 1Phase 30A
High Light:

salt spray corrosion test chamber

,

salt spray cabinet

Protective System Cyclic Corrosion Chamber , Environmental Test Chamber Continuous Spraying


Technical parameters

Model XB-OTS-60 XB-OTS-90 XB-OTS-120 XB-OTS-160 XB-OTS-200
Inner size (cm) 60x45x40 90x60x50 120x80x50 160x100x50 200x100x50
External size(cm) 107x60x118 141x88x128 190x110x140 230x120x140 270x150x150
Inside temp Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method.
(CASS)50°C±1°C
Brine temp 35°C±1°C 50°C±1°C
Test chamber volume 108L 270L 480L 800L 1440L
Brine chamber volume 15L 25L 40L 40L 40L
Compressed air pressure 1.00±0.01kgf/cm2
Spray volume 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)
Test room relative humidity 85%RH or more
PH 6.5~7.2 or 3.0~3.2
Spray method Programmable spray (including the continuous spray interrupted spray)

Protective system

1.The over temperature of whole machine.
2.Automatically cut the power off when the water level of test chamber or pressure bucket is below the standard.
3. The entire machine is set with a timer and alert of overflow, electronic leakage, light circuit.

Delivery

20 days after getting the deposit and balance

Warranty

12+2month(in view of transportation ,Customs be 2month),maintenance for lifelong




Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
EIA - 364-59 ASTM B117

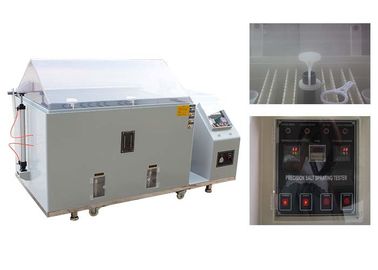

Protective System Cyclic Corrosion Chamber , Environmental Test Chamber Continuous Salt Spray Test for Zinc Plating 0

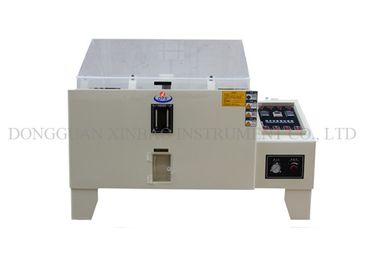

Protective System Cyclic Corrosion Chamber , Environmental Test Chamber Continuous Salt Spray Test for Zinc Plating 1


Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE



Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for High Accuracy Big Size Salt Mist Cyclic Corrosion Testing Equipment with Protective System.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.



FAQ:
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.

If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. Whats the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.

4.How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
